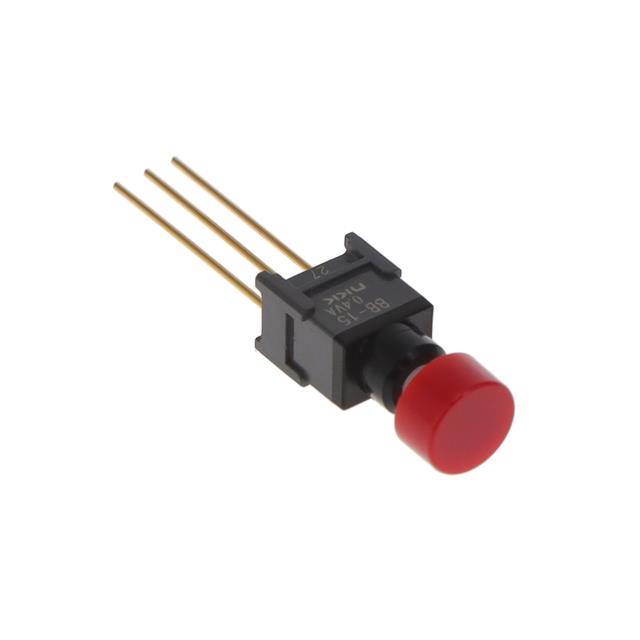

BB15AW-HC

Active

NKK Switches

PROCESS SEALED SUBMINIATURE ANTISTATIC PUSHBUTTON

Search across all available documentation for this part.

Active

NKK Switches

PROCESS SEALED SUBMINIATURE ANTISTATIC PUSHBUTTON

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Switch Function	Type	Voltage Rating - AC	Actuator Type	Color - Actuator/Cap	Current Rating (Amps)	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage Rating - DC	Mounting Type	Electrical Life	Actuator Marking
NKK Switches BB15AW-HC	PC Pin	On-Mom	Standard	28 V	Button Round	Red	0.4 VA	SPDT	-30 ░C	85 °C	Antistatic	28 V	Through Hole	50000 Cycles	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Through Hole

Technical documentation and resources
