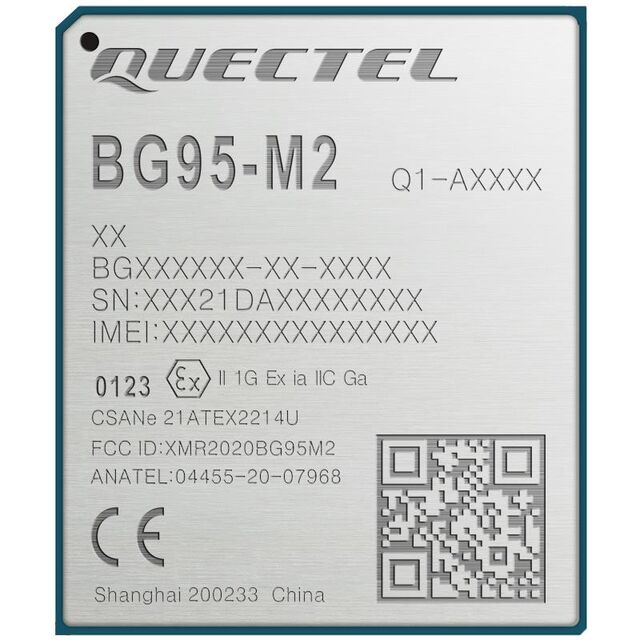

BG95M2LATEA-64-SGNS

Active

Quectel

RF TXRX MOD CELL NAV SMD

Deep-Dive with AI

Search across all available documentation for this part.

BG95M2LATEA-64-SGNS

Active

Quectel

RF TXRX MOD CELL NAV SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BG95M2LATEA-64-SGNS	BG95 Series

Antenna Type	Antenna Not Included	Antenna Not Included
Contents	-	Board(s)
Current - Receiving	21.2 mA	1.65 - 21.2 mA
Data Rate	1.119 Mbps	1.119 - 158.5 Mbps
Frequency	-	850 - 1900 MHz
Mounting Type	Surface Mount	mini PCIe, Surface Mount
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-35 °C	-35 °C
Package / Case	Module	Module
Power - Output	21 dBm	21 - 32 dBm
Protocol	GLONASS, GPS, LTE, Beidou, Galileo, GNSS	GNSS, GPS, Beidou, GSM, GLONASS, EGDE, LTE, Galileo
RF Family/Standard	Cellular, Navigation	Cellular, Navigation
Serial Interfaces	UART, I2C, GPIO, PCM, USB	UART, I2C, GPIO, PCM, USB
Utilized IC / Part	-	BG95, MDM9205-2
Voltage - Supply [Max]	4.8 V	4.3 - 4.8 V
Voltage - Supply [Min]	2.6 V	2.6 - 3.3 V

BG95 Series

RF TXRX MOD CELL NAV MINI PCIE

Part	Antenna Type	Protocol	Data Rate	Serial Interfaces	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Power - Output	RF Family/Standard	Package / Case	Frequency	Current - Receiving	Operating Temperature [Min]	Operating Temperature [Max]	Contents	Utilized IC / Part
Quectel BG95M3LA-MINIPCIE	Antenna Not Included	Beidou, EGDE, Galileo, GLONASS, GNSS, GPS, GSM, LTE	1.119 Mbps	GPIO, I2C, PCM, UART, USB	4.3 V	3.3 V	mini PCIe	21 dBm	Cellular, Navigation	Module	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	18.9 mA	-35 °C	75 ░C
Quectel BG95M3LATEA-64-SGNS	Antenna Not Included	Beidou, EGDE, Galileo, GLONASS, GNSS, GPS, GSM, LTE	1.119 Mbps	GPIO, I2C, PCM, UART, USB	4.3 V	3.3 V	Surface Mount	21 dBm	Cellular, Navigation	Module	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	18.9 mA	-35 °C	75 ░C
Quectel BG95M3LATEA-64-SGNS*IOT											850 MHz, 900 MHz, 1800 MHz, 1900 MHz				Board(s)	BG95
Quectel BG95N1LATEA-64-SGNS	Antenna Not Included	Beidou, Galileo, GLONASS, GNSS, GPS, LTE	158.5 kbps	GPIO, I2C, PCM, UART, USB	4.8 V	2.6 V	Surface Mount	21 dBm	Cellular, Navigation	Module			-35 °C	75 ░C
Quectel BG95M2LATEA-64-SGNS	Antenna Not Included	Beidou, Galileo, GLONASS, GNSS, GPS, LTE	1.119 Mbps	GPIO, I2C, PCM, UART, USB	4.8 V	2.6 V	Surface Mount	21 dBm	Cellular, Navigation	Module		21.2 mA	-35 °C	75 ░C
Quectel BG95M3LA-64-SGNS	Antenna Not Included	Beidou, EGDE, Galileo, GLONASS, GNSS, GPS, GSM, LTE	1.119 Mbps	GPIO, I2C, PCM, UART, USB	4.3 V	3.3 V	Surface Mount	21 dBm	Cellular, Navigation	Module	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	1.65 mA	-35 °C	75 ░C
Quectel BG95M5LA-64-SGNS	Antenna Not Included	Beidou, EGDE, Galileo, GLONASS, GNSS, GPS, GSM, LTE	1.119 Mbps	GPIO, I2C, PCM, UART, USB	4.3 V	3.3 V	Surface Mount	32 dBm	Cellular, Navigation	Module	850 MHz, 900 MHz, 1800 MHz, 1900 MHz		-35 °C	75 ░C
Quectel BG95M1LA-64-SGNS							Surface Mount			Module						MDM9205-2
Quectel BG95M2LA-64-SGNS							Surface Mount			Module
Quectel BG95N1LA-64-SGNS	Antenna Not Included	Beidou, Galileo, GLONASS, GNSS, GPS, LTE	158.5 kbps	GPIO, I2C, PCM, UART, USB	4.8 V	2.6 V	Surface Mount	21 dBm	Cellular, Navigation	Module			-35 °C	75 ░C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 37.50

Description

General part information

BG95 Series

Cellular, Navigation BeiDou, Galileo, GLONASS, GPS, GNSS, LTE Transceiver Module Antenna Not Included Surface Mount

Documents

Technical documentation and resources

No documents available
