SJD12A14L01

Active

YAGEO

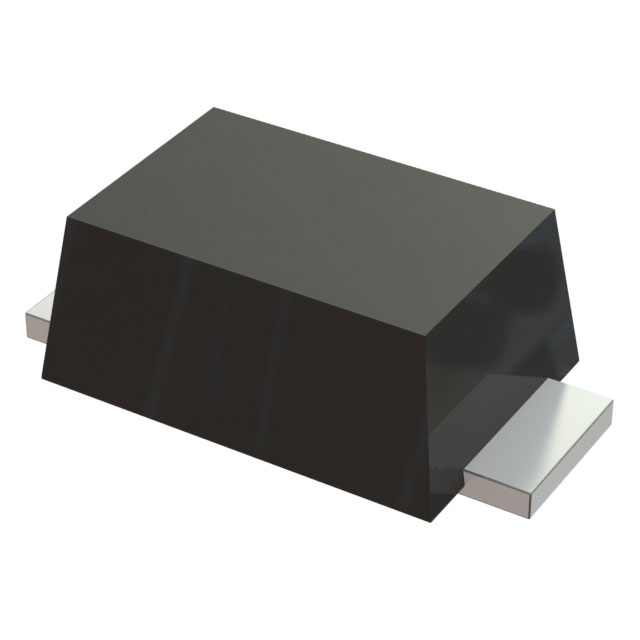

TVS DIODE 14VWM 23.2VC SOD123S

Search across all available documentation for this part.

Active

YAGEO

TVS DIODE 14VWM 23.2VC SOD123S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

23.2V Clamp 8.6A Ipp Tvs Diode Surface Mount SOD-123S

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	SJD12A14L01	SJD12A Series

Applications	General Purpose	General Purpose
Current - Peak Pulse (10/1000µs)	8.6 A	2.5 - 21.8 A
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	DO-219AA	DO-219AA
Power - Peak Pulse	1000 W	1000 W
Power - Peak Pulse	1 kW	1 kW
Power Line Protection	False	False
Supplier Device Package	SOD-123S	SOD-123S
Type	Zener	Zener
Unidirectional Channels [custom]	1	1
Voltage - Breakdown (Min) [Min]	15.6 V	6.4 - 47.8 V
Voltage - Clamping (Max) @ Ipp	-	9.2 - 82.4 V
Voltage - Clamping (Max) @ Ipp [Max]	23.2 V	10.3 - 69.4 V
Voltage - Reverse Standoff (Typ)	14 V	5 - 51 V

TVS ARRAY ESD, SOD-123, 51V 82.4

Part	Voltage - Reverse Standoff (Typ)	Type	Current - Peak Pulse (10/1000µs)	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Mounting Type	Unidirectional Channels [custom]	Supplier Device Package	Power - Peak Pulse	Power - Peak Pulse	Voltage - Clamping (Max) @ Ipp	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Breakdown (Min) [Min]
YAGEO SJD12A51L01	51 V	Zener	2.5 A	General Purpose	-55 °C	150 °C	DO-219AA	Surface Mount	1	SOD-123S	1000 W	1 kW	82.4 V
YAGEO SJD12A14L01	14 V	Zener	8.6 A	General Purpose	-55 °C	150 °C	DO-219AA	Surface Mount	1	SOD-123S	1000 W	1 kW		23.2 V	15.6 V
YAGEO SJD12A43L01	43 V	Zener	2.9 A	General Purpose	-55 °C	150 °C	DO-219AA	Surface Mount	1	SOD-123S	1000 W	1 kW		69.4 V	47.8 V
YAGEO SJD12A10L01	10 V	Zener	11.8 A	General Purpose	-55 °C	150 °C	DO-219AA	Surface Mount	1	SOD-123S	1000 W	1 kW		17 V	11.1 V
YAGEO SJD12A36L01	36 V	Zener	3.5 A	General Purpose	-55 °C	150 °C	DO-219AA	Surface Mount	1	SOD-123S	1000 W	1 kW		58.1 V	40 V
YAGEO SJD12A20L01	20 V	Zener	6.2 A	General Purpose	-55 °C	150 °C	DO-219AA	Surface Mount	1	SOD-123S	1000 W	1 kW		32.4 V	22.2 V
YAGEO SJD12A05L01	5 V	Zener	21.8 A	General Purpose	-55 °C	150 °C	DO-219AA	Surface Mount	1	SOD-123S	1000 W	1 kW	9.2 V		6.4 V
YAGEO SJD12A28L01	28 V	Zener	4.4 A	General Purpose	-55 °C	150 °C	DO-219AA	Surface Mount	1	SOD-123S	1000 W	1 kW		45.4 V	31.1 V
YAGEO SJD12A18L01	18 V	Zener	6.9 A	General Purpose	-55 °C	150 °C	DO-219AA	Surface Mount	1	SOD-123S	1000 W	1 kW		29.2 V	20 V
YAGEO SJD12A06L01	6 V	Zener	19.4 A	General Purpose	-55 °C	150 °C	DO-219AA	Surface Mount	1	SOD-123S	1000 W	1 kW		10.3 V	6.67 V
