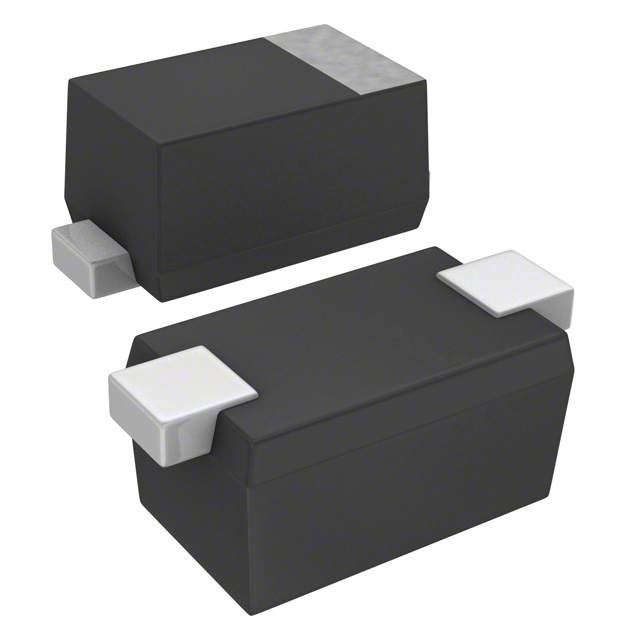

DB2141300L

Unknown

Panasonic Industrial Automation Sales

DIODE SCHOT 40V 2A SMINI2-F4-B-B

Search across all available documentation for this part.

Unknown

Panasonic Industrial Automation Sales

DIODE SCHOT 40V 2A SMINI2-F4-B-B

Technical Specifications

Parameters and characteristics for this part

Specification	DB2141300L

Capacitance @ Vr, F	43 pF
Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	150 µA
Mounting Type	Surface Mount
Operating Temperature - Junction	150 °C
Package / Case	2-SMD, Flat Leads
Speed	200 mA, 500 ns
Supplier Device Package	SMINI2-F4-B-B
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If [Max]	530 mV

Part	Current - Reverse Leakage @ Vr	Supplier Device Package	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Mounting Type	Capacitance @ Vr, F	Operating Temperature - Junction	Technology	Voltage - Forward (Vf) (Max) @ If [Max]	Speed
Panasonic Industrial Automation Sales DB2141300L	150 µA	SMINI2-F4-B-B	2 A	40 V	2-SMD Flat Leads	Surface Mount	43 pF	150 °C	Schottky	530 mV	200 mA 500 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 40 V 2A Surface Mount SMINI2-F4-B-B

Technical documentation and resources

No documents available
