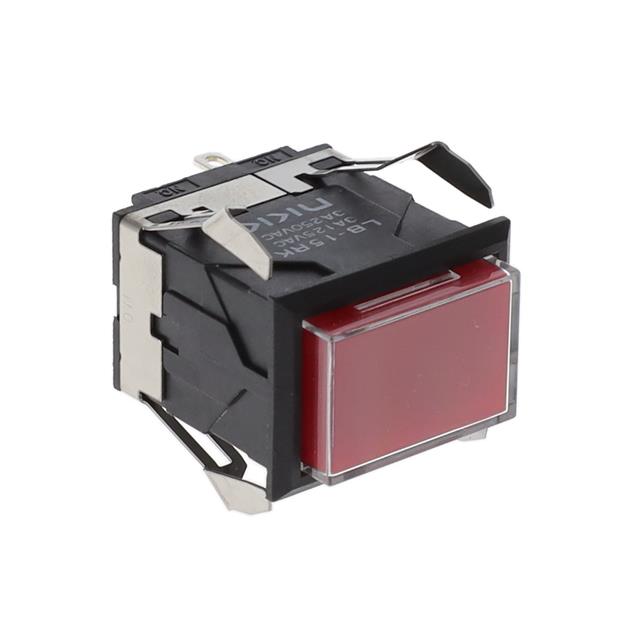

LB15RKW01-5C12-JC

Active

NKK Switches

STANDARD SIZE SNAP-IN PUSHBUTTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LB15RKW01-5C12-JC

Active

NKK Switches

STANDARD SIZE SNAP-IN PUSHBUTTON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LB15RKW01-5C12-JC

Actuator Marking	No Marking
Actuator Type	Rectangular, Button
Circuit	SPDT
Color - Actuator/Cap	Clear (Red Filter/Diffuser)
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	12 VDC
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	22.4 mm
Panel Cutout Dimensions [y]	16.2 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

LB15RKW01 Series

Part	Current Rating (Amps)	Electrical Life	Circuit	Type	Voltage Rating - DC	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Mounting Type	Termination Style	Termination Style	Termination Style	Voltage Rating - AC	Mechanical Life	Actuator Marking	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Color - Actuator/Cap	Illumination Voltage (Nominal)	Illumination Type, Color
NKK Switches LB15RKW01-E	3 A	100000 Cycles	SPDT	Standard	30 V	On-Mom	70 °C	-25 °C	Rectangular Button	Panel Mount Snap-In	0.11 in	Quick Connect Solder	2.8 mm	125 V	1000000 Cycles	No Marking	22.4 mm	16.2 mm	Yellow
NKK Switches LB15RKW01-5C24-JC	3 A	100000 Cycles	SPDT	Illuminated Standard	30 V	On-Mom	50 °C	-25 °C	Rectangular Button	Panel Mount Snap-In	0.11 in	Quick Connect Solder	2.8 mm	125 V	1000000 Cycles	No Marking	22.4 mm	16.2 mm	Clear (Red Filter/Diffuser)	24 V	LED Red
NKK Switches LB15RKW01-F	3 A	100000 Cycles	SPDT	Standard	30 V	On-Mom	70 °C	-25 °C	Rectangular Button	Panel Mount Snap-In	0.11 in	Quick Connect Solder	2.8 mm	125 V	1000000 Cycles	No Marking	22.4 mm	16.2 mm	Green
NKK Switches LB15RKW01-A	3 A	100000 Cycles	SPDT	Standard	30 V	On-Mom	70 °C	-25 °C	Rectangular Button	Panel Mount Snap-In	0.11 in	Quick Connect Solder	2.8 mm	125 V	1000000 Cycles	No Marking	22.4 mm	16.2 mm	Black
NKK Switches LB15RKW01-5D24-JB	3 A	100000 Cycles	SPDT	Illuminated Standard	30 V	On-Mom	50 °C	-25 °C	Rectangular Button	Panel Mount Snap-In	0.11 in	Quick Connect Solder	2.8 mm	125 V	1000000 Cycles	No Marking	22.4 mm	16.2 mm	Clear	24 V	Amber LED
NKK Switches LB15RKW01-5F05-JB	3 A	100000 Cycles	SPDT	Illuminated Standard	30 V	On-Mom	50 °C	-25 °C	Rectangular Button	Panel Mount Snap-In	0.11 in	Quick Connect Solder	2.8 mm	125 V	1000000 Cycles	No Marking	22.4 mm	16.2 mm	Clear	5 VDC	Green LED
NKK Switches LB15RKW01-C/AT4057	3 A	100000 Cycles	SPDT	Standard	30 V	On-Mom	70 °C	-25 °C	Rectangular Button	Panel Mount Snap-In	0.11 in	Quick Connect Solder	2.8 mm	125 V	1000000 Cycles	No Marking	22.4 mm	16.2 mm	Red
NKK Switches LB15RKW01-5C12-JC	3 A	100000 Cycles	SPDT	Illuminated Standard	30 V	On-Mom	50 °C	-25 °C	Rectangular Button	Panel Mount Snap-In	0.11 in	Quick Connect Solder	2.8 mm	125 V	1000000 Cycles	No Marking	22.4 mm	16.2 mm	Clear (Red Filter/Diffuser)	12 VDC	LED Red
NKK Switches LB15RKW01-5F-JB	3 A	100000 Cycles	SPDT	Illuminated Standard	30 V	On-Mom	50 °C	-25 °C	Rectangular Button	Panel Mount Snap-In	0.11 in	Quick Connect Solder	2.8 mm	125 V	1000000 Cycles	No Marking	22.4 mm	16.2 mm	Clear	2.1 VDC	Green LED
NKK Switches LB15RKW01-5C-JC	3 A	100000 Cycles	SPDT	Illuminated Standard	30 V	On-Mom	50 °C	-25 °C	Rectangular Button	Panel Mount Snap-In	0.11 in	Quick Connect Solder	2.8 mm	125 V	1000000 Cycles	No Marking	22.4 mm	16.2 mm	Clear (Red Filter/Diffuser)	1.9 VDC	LED Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.10
		10	$ 22.80
		100	$ 19.85
Newark	Each	1	$ 44.36
		5	$ 39.56
		10	$ 38.21
		25	$ 36.10
		50	$ 33.60
		100	$ 29.76
		250	$ 26.69

Description

General part information

LB15RKW01 Series

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In
