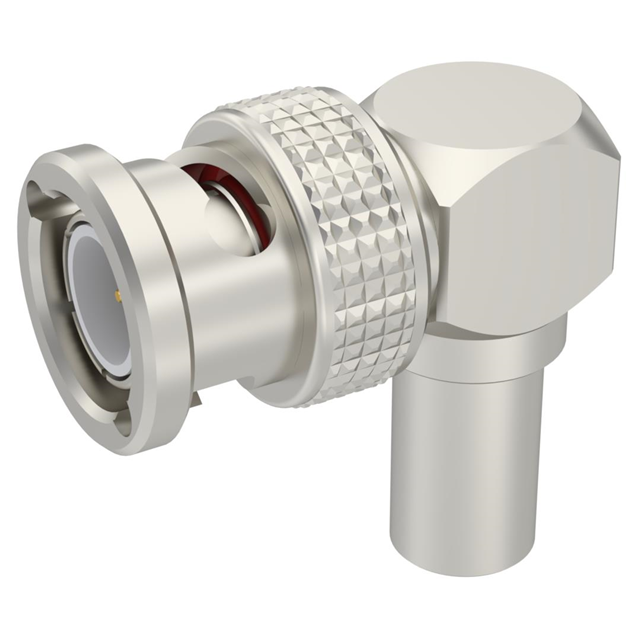

BNC / RIGHT ANGLE PLUG CRIMP TYP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC / RIGHT ANGLE PLUG CRIMP TYP

Technical Specifications

Parameters and characteristics for this part

Specification	R142184161

Body Finish	Nickel
Body Material	Brass
Cable Group	62, RG-59
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polypropylene (PP)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1.5 GHz
Housing Color	Silver
Impedance	75 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-35 °C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Housing Color	Shield Termination	Center Contact Plating	Connector Style	Body Material	Number of Ports	Connector Type	Mounting Type	Voltage Rating	Body Finish	Fastening Type	Impedance	Frequency - Max [Max]	Cable Group	Contact Termination	Dielectric Material	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles
Radiall USA, Inc. R142184161	Silver	Crimp	Gold	BNC	Brass	1	Male Pin Plug	Free Hanging (In-Line) Right Angle	500 V	Nickel	Bayonet Lock	75 Ohms	1.5 GHz	62 RG-59	Crimp	Polypropylene (PP)	Brass	-35 °C	70 °C
Radiall USA, Inc. R142184000W	Silver	Crimp	Gold	BNC	Brass	1	Male Pin Plug	Free Hanging (In-Line) Right Angle	500 V	Nickel	Bayonet Lock	75 Ohms	1.5 GHz	62 RG-59	Crimp	Polytetrafluoroethylene (PTFE)	Beryllium Copper	-65 ░C	165 °C	500
