SDT20120GCTFP
ActiveDiodes Inc
20ATRENCH SCHOTTKY BARRIER RECTIFIER
Deep-Dive with AI
Search across all available documentation for this part.
SDT20120GCTFP
ActiveDiodes Inc
20ATRENCH SCHOTTKY BARRIER RECTIFIER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SDT20120GCTFP |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 10 A |
| Current - Reverse Leakage @ Vr | 30 µA |
| Diode Configuration | 1 Pair Common Cathode |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |

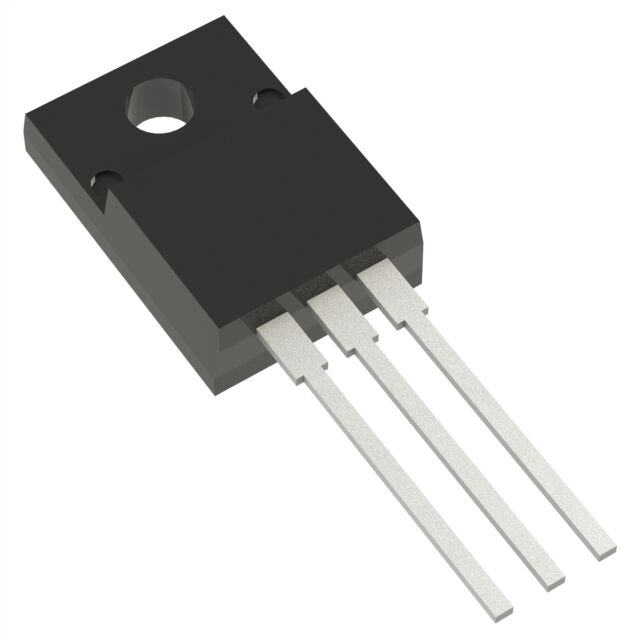

| Package / Case | TO-220-3 Full Pack, Isolated Tab |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | ITO220AB (Type WX) |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 120 V |
| Voltage - Forward (Vf) (Max) @ If | 830 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 50 | $ 0.58 | |
Description
General part information
SDT20120CTFP Series
The SDT20120GCT, SDT20120GCTFP provides very low VFand extremely excellent reverse leakage stability at high temperatures. It is ideal for use as a rectifier, freewheel diode or blocking diode in DC-DC converters and AC-DC adaptors.
