966871-1
ActiveTE Connectivity AMP Connectors

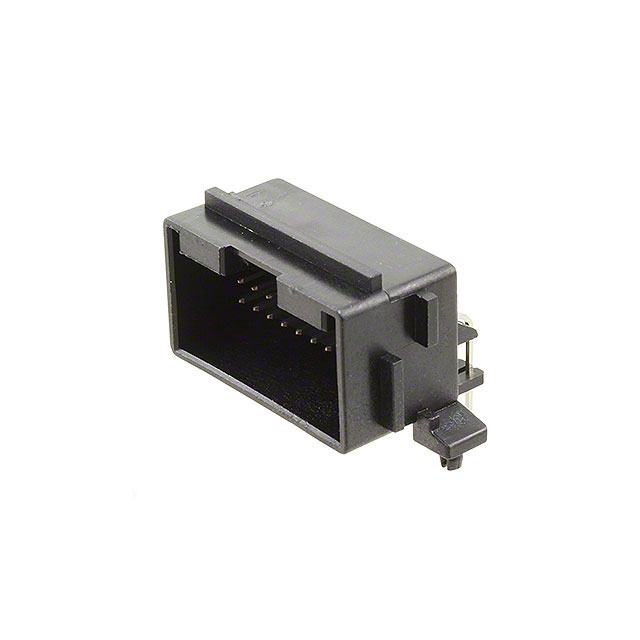

CONN HEADER R/A 20POS 2.5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
966871-1
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 20POS 2.5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 966871-1 |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 6.8 mm |
| Contact Length - Mating | 0.268 in |
| Contact Length - Post | 0.13 in |
| Contact Length - Post | 3.3 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Insulation Color | Black |
| Insulation Height | 0.772 " |
| Insulation Height | 19.6 mm |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating | 2.5 mm |
| Pitch - Mating | 0.098 in |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.16 | |
| 10 | $ 5.93 | |||
| 80 | $ 5.01 | |||
| 440 | $ 4.36 | |||
| 945 | $ 4.10 | |||
966871 Series
CONN HEADER R/A 20POS 2.5MM
| Part | Mounting Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish - Post | Insulation Height | Insulation Height | Contact Material | Style | Contact Type | Insulation Color | Fastening Type | Insulation Material | Shrouding | Contact Length - Mating | Contact Length - Mating | Contact Length - Post | Contact Length - Post | Number of Positions | Pitch - Mating | Pitch - Mating | Connector Type | Contact Shape | Number of Positions Loaded | Number of Rows | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 966871-1 | Through Hole, Right Angle | 2.54 mm | 0.1 in | Tin | 0.772 " | 19.6 mm | Copper Alloy | Board to Board, Cable | Male Pin | Black | Locking Ramp | Polybutylene Terephthalate (PBT), Glass Filled | Shrouded - 4 Wall | 6.8 mm | 0.268 in | 0.13 in | 3.3 mm | 20 | 2.5 mm | 0.098 in | Header | Square | All | 2 | Solder |
Description
General part information
966871 Series
Connector Header Through Hole, Right Angle 20 position 0.098" (2.50mm)
