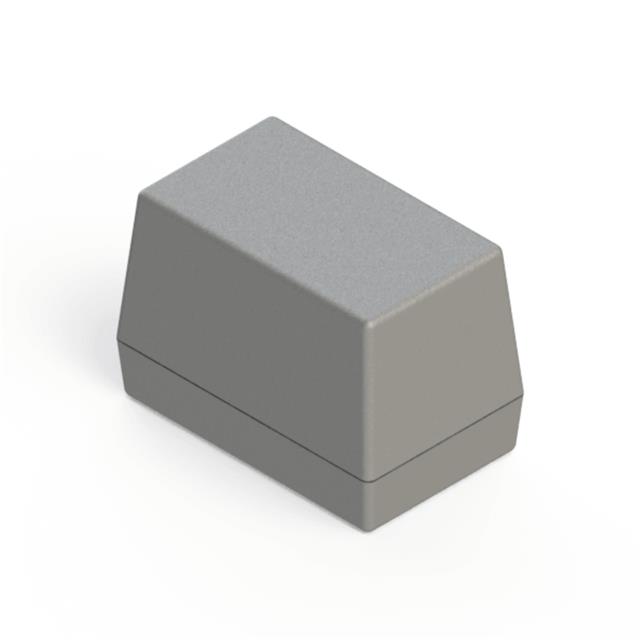

113,GY

Active

Serpac

BOX ABS GRAY 3.6"L X 2.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 3.6"L X 2.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	113,GY

Area (L x W)	52.3 cm²
Area (L x W)	8.1 in²
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports
Height [z]	63.5 mm
Height [z]	2.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	91.44 mm
Size / Dimension [x]	3.6 in
Size / Dimension [y]	57.15 mm
Size / Dimension [y]	2.25 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	78.02 g
Weight	0.172 lb

Part	Ratings	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Color	Weight	Weight	Features	Container Type	Design	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material	Thickness	Thickness	Material Flammability Rating
Serpac 113,AL	IP40 NEMA 1	63.5 mm	2.5 in	52.3 cm²	8.1 in²	Almond	78.02 g	0.172 lb	PCB Supports	Box	Hand Held Split Sides	91.44 mm	57.15 mm	3.6 in	2.25 in	Plastic ABS	2.54 mm	0.1 in	UL94 HB
Serpac 113,GY	IP40 NEMA 1	63.5 mm	2.5 in	52.3 cm²	8.1 in²	Gray	78.02 g	0.172 lb	PCB Supports	Box	Hand Held Split Sides	91.44 mm	57.15 mm	3.6 in	2.25 in	Plastic ABS	2.54 mm	0.1 in	UL94 HB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Gray Hand Held, Split Sides 3.600" L x 2.250" W (91.44mm x 57.15mm) X 2.500" (63.50mm)

Technical documentation and resources

No documents available
