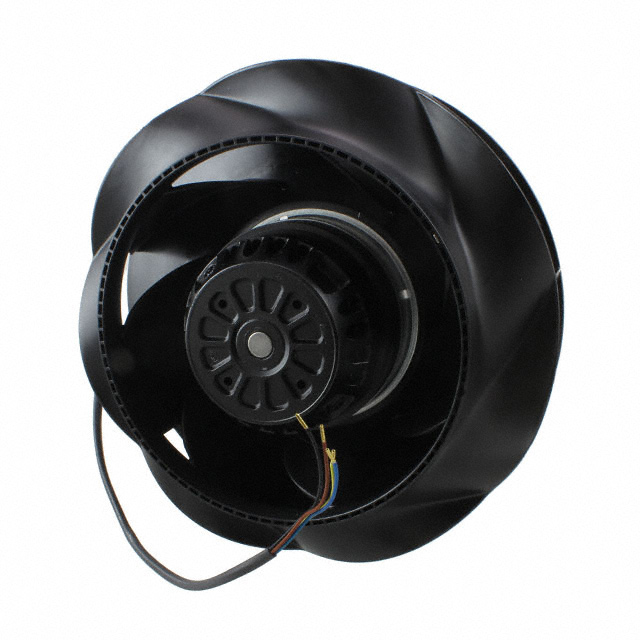

R2E250-RB06-12

Active

ebm-papst Inc.

AC MOTORIZED IMPELLER CENTRIFUGAL BALL BEARING 230V 1006.5CFM 250 X 113MM

Search across all available documentation for this part.

Active

ebm-papst Inc.

AC MOTORIZED IMPELLER CENTRIFUGAL BALL BEARING 230V 1006.5CFM 250 X 113MM

Technical Specifications

Parameters and characteristics for this part

Specification	R2E250-RB06-12

Air Flow	28.18 m³/min
Air Flow	1006.5 CFM
Approval Agency	UL
Bearing Type	Ball
Current Rating (Amps)	1.71 A
Fan Type	Motorized Impellers
Ingress Protection	IP44
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Noise	81 dB(A)
Operating Temperature [Max]	55 °C
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	390 W
RPM	3100 RPM
Size / Dimension	Round
Size / Dimension [diameter]	255 mm
Termination	4 Wire Leads
Voltage - Rated	230 VAC
Width	108 mm

Part	Ingress Protection	Features	Approval Agency	Bearing Type	Material - Blade	Width [y]	Current Rating (Amps)	Termination	Power (Watts)	Fan Type	Size / Dimension [diameter]	RPM	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension	Air Flow	Air Flow	Width	Noise
ebm-papst Inc. R2E250-AS47-26	IP44	Capacitor Thermal Overload Protector (TOP)	CCC EAC	Ball	Nylon Polyamide (PA)	99 mm	0.95 A	4 Wire Leads with Splice Terminals	215 W	Motorized Impellers	250 mm	2700 RPM	230 VAC	-25 °C	40 °C	40 °C	-25 °C
ebm-papst Inc. R2E250-RB06-12	IP44		UL	Ball	Fiberglass Reinforced Nylon Polyamide (PA)		1.71 A	4 Wire Leads	390 W	Motorized Impellers	255 mm	3100 RPM	230 VAC	-25 °C	55 °C	55 °C	-25 °C	Round	28.18 m³/min	1006.5 CFM	108 mm	81 dB(A)
ebm-papst Inc. R2E250-AS47-09	IP44	Capacitor Thermal Overload Protector (TOP)		Ball	Fiberglass Reinforced Nylon Polyamide (PA)	99 mm	0.95 A	4 Wire Leads with Splice Terminals	215 W	Motorized Impellers	250 mm	2700 RPM	230 VAC	-25 °C	40 °C	40 °C	-25 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Motorized Impellers 230VAC Round - 255mm Dia Ball 1006.5 CFM (28.18m³/min) 4 Wire Leads
