G3B15AB Series

Part	Color - Actuator/Cap	Features	Type	Termination Style	Operating Temperature (Max)	Operating Temperature (Min)	Switch Function	Current Rating	Circuit	Voltage Rating - AC	Actuator Type	Actuator Marking	Mounting Type	Voltage Rating - DC	Mechanical Life (Cycles)	Electrical Life (Cycles)
NKK Switches G3B15AB-S	Gray	Process Sealed	Standard	Gull Wing	85 °C	-30 °C	On-Mom	0.4 VA	SPDT	28 V	Plunger Round	No Marking	Surface Mount	28 V	50000 Cycles	50000
NKK Switches G3B15AB-S-XA	Black	Process Sealed	Standard	Gull Wing	85 °C	-30 °C	On-Mom	0.4 VA	SPDT	28 V	Button Round	No Marking	Surface Mount	28 V	50000 Cycles	50000
NKK Switches G3B15AB-S-YA	Black	Process Sealed	Standard	Gull Wing	85 °C	-30 °C	On-Mom	0.4 VA	SPDT	28 V	Button Round	No Marking	Surface Mount	28 V	50000 Cycles	50000

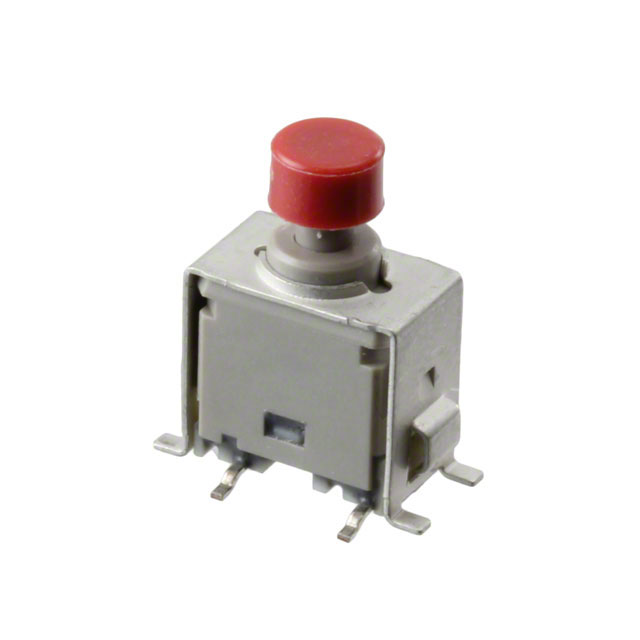

NKK Switches G3B15AB-S-YC	Red	Process Sealed	Standard	Gull Wing	85 °C	-30 °C	On-Mom	0.4 VA	SPDT	28 V	Button Round	No Marking	Surface Mount	28 V	50000 Cycles	50000
NKK Switches G3B15AB-XA	Black	Process Sealed	Standard	Gull Wing	85 °C	-30 °C	On-Mom	0.4 VA	SPDT	28 V	Button Round	No Marking	Surface Mount	28 V	50000 Cycles	50000

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
