6803235242F

Active

DIALIGHT

10MM HG/G PMI-24VDC

Search across all available documentation for this part.

Active

DIALIGHT

10MM HG/G PMI-24VDC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6803235242F	6803235 Series

Current	30 mA	30 mA
Lamp Color	Green	Green
Millicandela Rating	4070 mcd	4070 - 25000 mcd
Panel Cutout Dimensions	-	0.41 in
Panel Cutout Dimensions	-	10.41 mm
Panel Cutout Dimensions [custom]	0.37 in	0.37 in
Panel Cutout Dimensions [custom]	9.4 mm	9.4 mm
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Type	LED	LED
Viewing Angle	-	30 °
Voltage	24 V	6 - 24 V
Wavelength - Peak	-	525 nm

LED PANEL INDCATOR GREEN 6V

Part	Voltage	Millicandela Rating	Viewing Angle	Lamp Color	Wavelength - Peak	Ratings	Current	Type	Panel Cutout Shape	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]
DIALIGHT 6803235222F	6 V	25000 mcd	30 °	Green	525 nm	DC	30 mA	LED
DIALIGHT 6803235142F	24 V	4330 mcd		Green		DC	30 mA	LED	Round	0.41 in	10.41 mm
DIALIGHT 6803235242F	24 V	4070 mcd		Green		DC	30 mA	LED	Round			0.37 in	9.4 mm
DIALIGHT 6803235132F	12 V	4330 mcd		Green		DC	30 mA	LED	Round			0.37 in	9.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

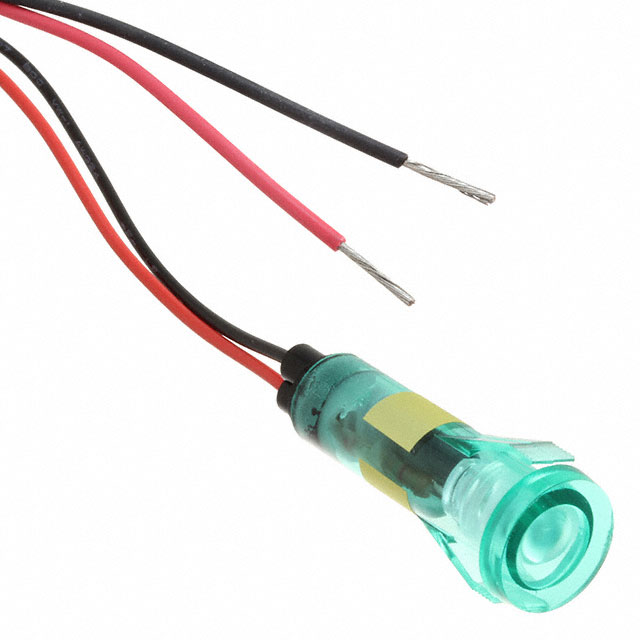

LED Panel Indicator Green 24V 30mA Wire Leads - 6" (152.40mm)

Technical documentation and resources

No documents available
