EN50306-3-RAIL-4X0.75

Obsolete

TE Connectivity Raychem Cable Protection

CABLE 4COND BLACK SHLD METER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

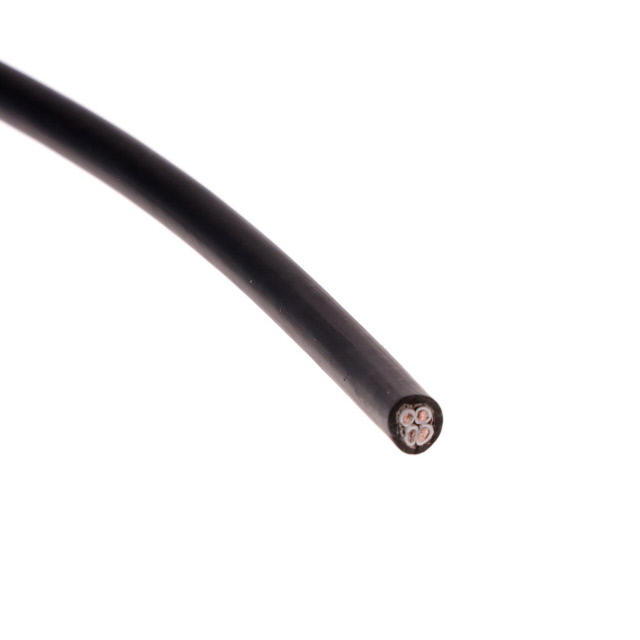

EN50306-3-RAIL-4X0.75

Obsolete

TE Connectivity Raychem Cable Protection

CABLE 4COND BLACK SHLD METER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EN50306-3-RAIL-4X0.75

Cable Type	Multi-Conductor
Conductor Material	Copper, Tinned
Conductor Strand [custom]	0.0063 in
Conductor Strand [custom]	37
Jacket (Insulation) Diameter [diameter]	5.51 mm
Jacket (Insulation) Diameter [diameter]	0.217 in
Jacket (Insulation) Material	Polymer
Jacket (Insulation) Thickness	0.203 mm
Jacket (Insulation) Thickness	0.008 in
Jacket Color	Black
Length	Enter Number of Meters in Order Quantity
Number of Conductors	4
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Shield Material	Copper, Tinned
Shield Type	Braid
Voltage	300 V
Wire Gauge [diameter]	0.75 mm˛

EN50306 Series

Part	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Length	Conductor Material	Spool Size	Spool Size	Conductor Strand [diameter]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge [diameter]	Jacket Color	Jacket (Insulation) Material	Shield Material	Number of Conductors	Shield Type	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]
TE Connectivity Raychem Cable Protection EN50306-3-RAIL-1X2.50	Hook-Up	0.2 mm	0.008 in	0.173 in	4.4 mm	300 V	Enter Number of Meters in Order Quantity	Copper Tinned	3281 '	1000 m	0.0118 "	37	-40 °C	120 °C	2.5 mm˛	Black	Polymer
TE Connectivity Raychem Cable Protection EN50306-3-RAIL-3X2.50	Multi-Conductor	0.203 mm	0.008 in	0.307 in	7.8 mm	300 V	Enter Number of Meters in Order Quantity	Copper Tinned			0.0118 "	37	-40 °C	120 °C		Black	Polymer	Copper Tinned	3	Braid	2.5 mm²
TE Connectivity Raychem Cable Protection EN50306-3-RAIL-4X1.00	Multi-Conductor	0.203 mm	0.008 in	0.236 in	5.99 mm	300 V	Enter Number of Meters in Order Quantity	Copper Tinned					-40 °C	120 °C		Black	Polymer	Copper Tinned	4	Braid	1 mm²	37	0.0071 in
TE Connectivity Raychem Cable Protection EN50306-3-RAIL-3X1.00	Multi-Conductor	0.203 mm	0.008 in	0.217 in	5.51 mm	300 V	Enter Number of Meters in Order Quantity	Copper Tinned					-40 °C	120 °C		Black	Polymer	Copper Tinned	3	Braid	1 mm²	37	0.0071 in
TE Connectivity Raychem Cable Protection EN50306-2-RAIL-0.50	Hook-Up	0.18 mm	0.007 in	0.057 "	1.45 mm	300 V	Enter Number of Meters in Order Quantity	Copper Tinned	3281 '	1000 m	0.0071 in	19 Strands	-40 °C	120 °C			Polymer				0.5 mm˛
TE Connectivity Raychem Cable Protection EN50306-3-RAIL-2X1.50	Multi-Conductor	0.203 mm	0.008 in	0.24 in	6.1 mm	300 V	Enter Number of Meters in Order Quantity	Copper Tinned				37	-40 °C	120 °C	1.5 mm˛	Black	Polymer	Copper Tinned	2	Braid			0.0091 in
TE Connectivity Raychem Cable Protection EN50306-3-RAIL-1X1.50	Hook-Up	0.2 mm	0.008 in	0.142 in	3.61 mm	300 V	Enter Number of Meters in Order Quantity	Copper Tinned	3281 '	1000 m		37	-40 °C	120 °C	1.5 mm˛	Black	Polymer						0.0091 in
TE Connectivity Raychem Cable Protection EN50306-3-RAIL-4X0.75	Multi-Conductor	0.203 mm	0.008 in	0.217 in	5.51 mm	300 V	Enter Number of Meters in Order Quantity	Copper Tinned					-40 °C	120 °C	0.75 mm˛	Black	Polymer	Copper Tinned	4	Braid		37	0.0063 in
TE Connectivity Raychem Cable Protection EN50306-3-RAIL-2X0.75	Multi-Conductor	0.203 mm	0.008 in	0.185 in	4.7 mm	300 V	Enter Number of Meters in Order Quantity	Copper Tinned					-40 °C	120 °C	0.75 mm˛	Black	Polymer	Copper Tinned	2	Braid		37	0.0063 in
TE Connectivity Raychem Cable Protection EN50306-3-RAIL-2X1.00	Multi-Conductor	0.203 mm	0.008 in	0.205 in	5.21 mm	300 V	Enter Number of Meters in Order Quantity	Copper Tinned					-40 °C	120 °C		Black	Polymer	Copper Tinned	2	Braid	1 mm²	37	0.0071 in
