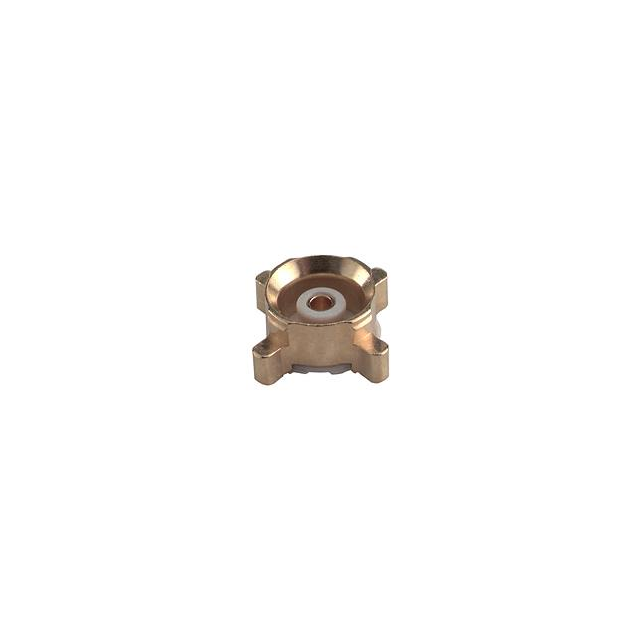

82_MMBX-S50-0-1/111_NE

Active

Huber+Suhner, Inc.

RF COAX CONN, JACK, PCB, 50 OHM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	82_MMBX-S50-0-1/111_NE

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MMBX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Liquid Crystal Polymer (LCP)
Fastening Type	Snap-On
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	250 VDC

82_MMBX Series

Part	Mounting Type	Body Finish	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Body Material	Center Contact Plating	Impedance	Center Contact Material	Contact Termination	Shield Termination	Fastening Type	Connector Type	Number of Ports	Frequency - Max [Max]	Voltage Rating	Housing Color
Huber+Suhner, Inc. 82_MMBX-S50-0-15/111_NE	Surface Mount	Gold	MMBX	155 °C	-55 °C	Liquid Crystal Polymer (LCP)	Brass	Gold	50 Ohms	Brass	Solder	Solder	Snap-On	Female Socket Jack	1	12.4 GHz	330 VDC	Gold
Huber+Suhner, Inc. 82_MMBX-50-0-2/111_NH	Through Hole	Gold	MMBX	155 °C	-55 °C	Liquid Crystal Polymer (LCP)	Brass	Gold	50 Ohms	Brass	Solder	Solder	Snap-On	Female Socket Jack	1	12.4 GHz	250 VDC	Gold
Huber+Suhner, Inc. 82_MMBX-50-0-14/111_NH	Through Hole	Gold	MMBX	155 °C	-55 °C	Liquid Crystal Polymer (LCP)	Brass	Gold	50 Ohms	Brass	Solder	Solder	Snap-On	Female Socket Jack	1	12.4 GHz	250 VDC	Gold
Huber+Suhner, Inc. 82_MMBX-S50-0-1/111_NE	Surface Mount	Gold	MMBX	155 °C	-55 °C	Liquid Crystal Polymer (LCP)	Brass	Gold	50 Ohms	Brass	Solder	Solder	Snap-On	Female Socket Jack	1	12.4 GHz	250 VDC	Gold
Huber+Suhner, Inc. 82_MMBX-S50-0-20/111_NE	Surface Mount	Gold	MMBX	155 °C	-55 °C	Liquid Crystal Polymer (LCP)	Brass	Gold	50 Ohms	Brass	Solder	Solder	Snap-On	Female Socket Jack	1	12.4 GHz	330 VDC	Gold
Huber+Suhner, Inc. 82_MMBX-S50-0-13/111_NM	Surface Mount	Gold	MMBX	155 °C	-55 °C	Liquid Crystal Polymer (LCP)	Brass	Gold	50 Ohms	Brass	Solder	Solder	Snap-On	Female Socket Jack	1	12.4 GHz	250 VDC	Gold
Huber+Suhner, Inc. 82_MMBX-50-0-2/111_NM	Through Hole	Gold	MMBX	155 °C	-55 °C	Liquid Crystal Polymer (LCP)	Brass	Gold	50 Ohms	Brass	Solder	Solder	Snap-On	Female Socket Jack	1	12.4 GHz	330 VDC	Gold
Huber+Suhner, Inc. 82_MMBX-S50-0-15/111_NM	Surface Mount	Gold	MMBX	155 °C	-55 °C	Liquid Crystal Polymer (LCP)	Brass	Gold	50 Ohms	Brass	Solder	Solder	Snap-On	Female Socket Jack	1	12.4 GHz	330 VDC	Gold
Huber+Suhner, Inc. 82_MMBX-S50-0-13/111_NE	Surface Mount	Gold	MMBX	155 °C	-55 °C	Liquid Crystal Polymer (LCP)	Brass	Gold	50 Ohms	Brass	Solder	Solder	Snap-On	Female Socket Jack	1	12.4 GHz	250 VDC	Gold
Huber+Suhner, Inc. 82_MMBX-S50-0-20/111_NM	Surface Mount	Gold	MMBX	155 °C	-55 °C	Liquid Crystal Polymer (LCP)	Brass	Gold	50 Ohms	Brass	Solder	Solder	Snap-On	Female Socket Jack	1	12.4 GHz	330 VDC	Gold
