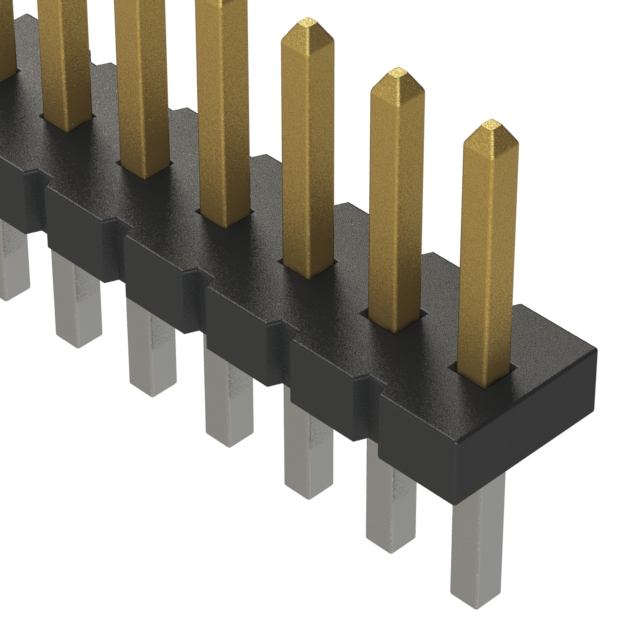

FTS-119-01-L-S

Active

Samtec Inc.

CONN HEADER VERT 19POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

FTS-119-01-L-S

Active

Samtec Inc.

CONN HEADER VERT 19POS 1.27MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTS-119-01-L-S

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.034 in
Insulation Height	0.86 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	19
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.244 in
Overall Contact Length	6.2 mm
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

FTS-119 Series

Part	Contact Finish - Post	Number of Positions Loaded	Termination	Style	Contact Length - Post	Contact Length - Post	Contact Shape	Material Flammability Rating	Contact Material	Number of Rows	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions	Features	Contact Finish - Mating	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Mounting Type	Fastening Type	Connector Type	Insulation Height	Insulation Height	Shrouding	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]	Contact Length - Mating [x]
Samtec Inc. FTS-119-03-F-D-S	Tin	All	Solder	Board to Board Cable	0.09 "	2.29 mm	Square	UL94 V-0	Phosphor Bronze	2	0.065 in	1.65 mm	0.05 in	1.27 mm	0.05 in	1.27 mm	-55 °C	125 °C	Male Pin	38	End Shrouds	Gold	Black	3 µin	0.076 µm	Liquid Crystal Polymer (LCP)	Through Hole	Push-Pull	Cuttable Header	0.034 in	0.86 mm	Unshrouded
Samtec Inc. FTS-119-01-L-DV-A	Tin	All	Solder	Board to Board Cable			Square	UL94 V-0	Phosphor Bronze	2	0.12 in	3.05 mm	0.05 in	1.27 mm	0.05 in	1.27 mm	-55 °C	125 °C	Male Pin	38	Board Guide	Gold	Black	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	Surface Mount	Push-Pull	Cuttable Header	0.034 in	0.86 mm	Unshrouded
Samtec Inc. FTS-119-03-L-D-S	Tin	All	Solder	Board to Board Cable	0.09 "	2.29 mm	Square	UL94 V-0	Phosphor Bronze	2	0.065 in	1.65 mm	0.05 in	1.27 mm	0.05 in	1.27 mm	-55 °C	125 °C	Male Pin	38	End Shrouds	Gold	Black	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	Through Hole	Push-Pull	Cuttable Header	0.034 in	0.86 mm	Unshrouded
Samtec Inc. FTS-119-01-F-DV-A	Tin	All	Solder	Board to Board Cable			Square	UL94 V-0	Phosphor Bronze	2	0.12 in	3.05 mm	0.05 in	1.27 mm	0.05 in	1.27 mm	-55 °C	125 °C	Male Pin	38	Board Guide	Gold	Black	3 µin	0.076 µm	Liquid Crystal Polymer (LCP)	Surface Mount	Push-Pull	Cuttable Header	0.034 in	0.86 mm	Unshrouded
Samtec Inc. FTS-119-01-L-S	Tin	All	Solder	Board to Board Cable	0.09 "	2.29 mm	Square	UL94 V-0	Phosphor Bronze	1	0.12 in	3.05 mm			0.05 in	1.27 mm	-55 °C	125 °C	Male Pin	19		Gold	Black	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	Through Hole	Push-Pull	Cuttable Header	0.034 in	0.86 mm	Unshrouded	0.244 in	6.2 mm
Samtec Inc. FTS-119-04-L-D	Tin	All	Solder	Board to Board Cable	0.09 "	2.29 mm	Square	UL94 V-0	Phosphor Bronze	2	0.15 in	3.81 mm	0.05 in	1.27 mm	0.05 in	1.27 mm	-55 °C	125 °C	Male Pin	38		Gold	Black	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	Through Hole	Push-Pull	Cuttable Header	0.034 in	0.86 mm	Unshrouded	0.274 in	6.96 mm
Samtec Inc. FTS-119-03-F-DV	Tin	All	Solder	Board to Board Cable			Square	UL94 V-0	Phosphor Bronze	2	0.065 in	1.65 mm	0.05 in	1.27 mm	0.05 in	1.27 mm	-55 °C	125 °C	Male Pin	38		Gold	Black	3 µin	0.076 µm	Liquid Crystal Polymer (LCP)	Surface Mount	Push-Pull	Cuttable Header	0.034 in	0.86 mm	Unshrouded
Samtec Inc. FTS-119-02-F-D	Tin	All	Solder	Board to Board Cable	0.09 "	2.29 mm	Square	UL94 V-0	Phosphor Bronze	2			0.05 in	1.27 mm	0.05 in	1.27 mm	-55 °C	125 °C	Male Pin	38		Gold	Black	3 µin	0.076 µm	Liquid Crystal Polymer (LCP)	Through Hole	Push-Pull	Cuttable Header	0.034 in	0.86 mm	Unshrouded	0.199 in	5.05 mm	1.9 mm	0.075 in
Samtec Inc. FTS-119-01-F-DV-P	Tin	All	Solder	Board to Board Cable			Square	UL94 V-0	Phosphor Bronze	2	0.12 in	3.05 mm	0.05 in	1.27 mm	0.05 in	1.27 mm	-55 °C	125 °C	Male Pin	38	Pick and Place	Gold	Black	3 µin	0.076 µm	Liquid Crystal Polymer (LCP)	Surface Mount	Push-Pull	Cuttable Header	0.034 in	0.86 mm	Unshrouded
Samtec Inc. FTS-119-01-L-DV	Tin	All	Solder	Board to Board Cable			Square	UL94 V-0	Phosphor Bronze	2	0.12 in	3.05 mm	0.05 in	1.27 mm	0.05 in	1.27 mm	-55 °C	125 °C	Male Pin	38		Gold	Black	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	Surface Mount	Push-Pull	Cuttable Header	0.034 in	0.86 mm	Unshrouded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.64
Sager	N/A	1	$ 2.86
		50	$ 2.62
		100	$ 2.34
		500	$ 2.03
		1000	$ 1.73
		2000	$ 1.42
		5000	$ 1.12
		10000	$ 0.78

Description

General part information

FTS-119 Series

Connector Header Through Hole 19 position 0.050" (1.27mm)

Documents

Technical documentation and resources

No documents available
