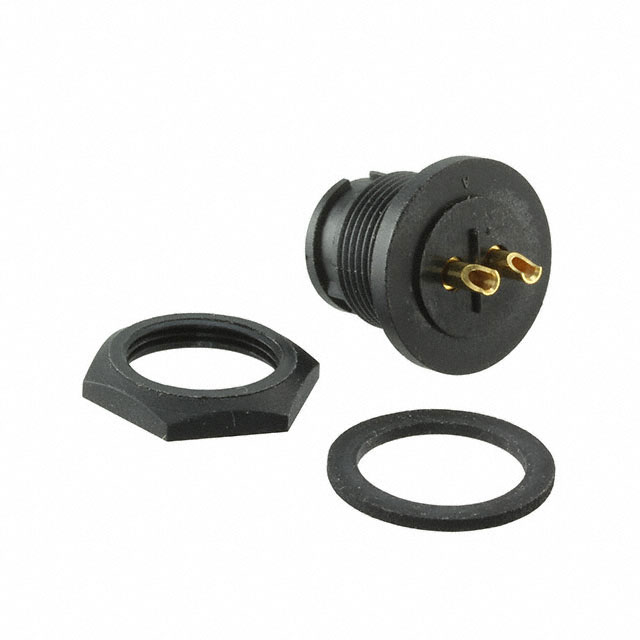

7382-2PG-300

Active

Conxall/Switchcraft

CONN RCPT MALE 2P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 2P GOLD SLDR CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Male Pins Solder Cup

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	7382-2PG-300	7382-2PG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	Weathertight	Weathertight
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Number of Positions	2	2
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

CONN RCPT MALE 2P GOLD SLDR CUP

Part	Mounting Feature	Orientation	Color	Current Rating (Amps)	Backshell Material, Plating	Number of Positions	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Primary Material	Applications	Contact Finish - Mating	Fastening Type	Shielding	Voltage Rating	Connector Type
Conxall/Switchcraft 7382-2PG-3ES	Bulkhead - Front Side Nut	Keyed	Black	Varies by Wire Gauge	Nylon, Polyamide (PA)	2	Brass	-40 °C	115 °C	Weathertight	Plastic	Automotive, Communication Systems, Instrumentation	Gold	Bayonet Lock	Unshielded	600 V	Male Pins, Receptacle
Conxall/Switchcraft 7382-2PG-300	Bulkhead - Front Side Nut	Keyed	Black	Varies by Wire Gauge	Nylon, Polyamide (PA)	2	Brass	-40 °C	115 °C	Weathertight	Plastic	Automotive, Communication Systems, Instrumentation	Gold	Bayonet Lock	Unshielded	600 V	Male Pins, Receptacle
