896-016-521-204
ActiveEDAC Inc.

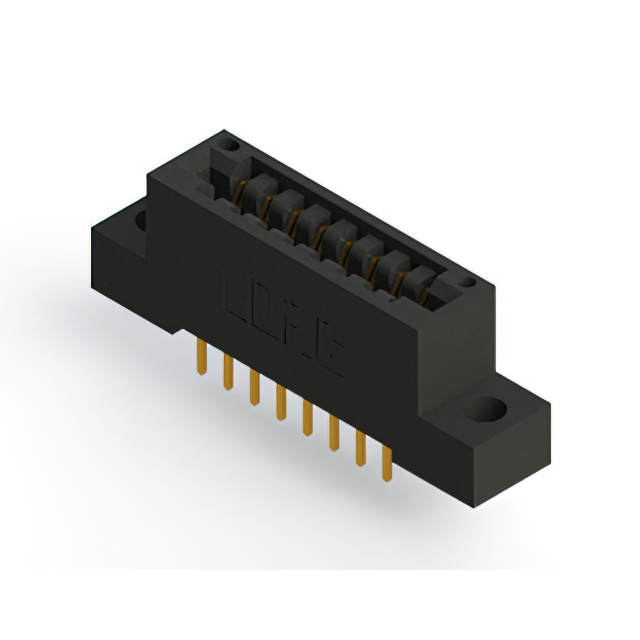

CONN EDGE DUAL FMALE 16POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
896-016-521-204
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 16POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 896-016-521-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
896-016 Series
...
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Contact Material | Material - Insulation | Color | Contact Type | Number of Positions/Bay/Row [custom] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Number of Positions | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Read Out | Gender | Termination Rows | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Termination | Card Type | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Polyphenylene Sulfide (PPS) | Black | Cantilever | 16 | Gold | 10 Áin | 0.25 Ám | 1 | 16 | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Single | Female | 1 | 125 °C | -40 °C | 0.125 in | 3.18 mm | Solder | Non Specified - Single Edge | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | Copper Alloy | Polyphenylene Sulfide (PPS) | Black | Cantilever | Gold | 10 Áin | 0.25 Ám | 2 | 16 | 4-40 Threaded Insert Top Mount Opening | Dual | Female | 2 | 125 °C | -40 °C | 0.125 in | 3.18 mm | Solder Eyelet(s) | Non Specified - Dual Edge | 8 | 8 | 8 | Card Extender | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Copper Alloy | Polyphenylene Sulfide (PPS) | Black | Cantilever | 16 | Gold | 10 Áin | 0.25 Ám | 1 | 16 | Single | Female | 1 | 125 °C | -40 °C | 0.125 in | 3.18 mm | Solder | Non Specified - Single Edge | |||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Copper Alloy | Polyphenylene Sulfide (PPS) | Black | Cantilever | 16 | Gold | 10 Áin | 0.25 Ám | 1 | 16 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Single | Female | 1 | 125 °C | -40 °C | 0.125 in | 3.18 mm | Solder | Non Specified - Single Edge | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Polyphenylene Sulfide (PPS) | Black | Cantilever | Gold | 10 Áin | 0.25 Ám | 2 | 16 | M3 Threaded Insert Top Mount Opening | Dual | Female | 2 | 125 °C | -40 °C | 0.125 in | 3.18 mm | Wire Wrap | Non Specified - Dual Edge | 8 | 8 | 8 | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Polyphenylene Sulfide (PPS) | Black | Cantilever | 16 | Gold | 10 Áin | 0.25 Ám | 1 | 16 | 4-40 Threaded Insert Top Mount Opening | Single | Female | 1 | 125 °C | -40 °C | 0.125 in | 3.18 mm | Wire Wrap | Non Specified - Single Edge | ||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Polyphenylene Sulfide (PPS) | Black | Cantilever | Gold | 10 Áin | 0.25 Ám | 2 | 16 | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Dual | Female | 2 | 125 °C | -40 °C | 0.125 in | 3.18 mm | Solder | Non Specified - Dual Edge | 8 | 8 | 8 | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Polyphenylene Sulfide (PPS) | Black | Cantilever | Gold | 10 Áin | 0.25 Ám | 2 | 16 | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | Dual | Female | 2 | 125 °C | -40 °C | 0.125 in | 3.18 mm | Solder Eyelet(s) | Non Specified - Dual Edge | 8 | 8 | 8 | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Copper Alloy | Polyphenylene Sulfide (PPS) | Black | Cantilever | Gold | 10 Áin | 0.25 Ám | 2 | 16 | 4-40 Threaded Insert Top Mount Opening | Dual | Female | 2 | 125 °C | -40 °C | 0.125 in | 3.18 mm | Solder | Non Specified - Dual Edge | 8 | 8 | 8 | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Polyphenylene Sulfide (PPS) | Black | Cantilever | Gold | 10 Áin | 0.25 Ám | 2 | 16 | Dual | Female | 2 | 125 °C | -40 °C | 0.125 in | 3.18 mm | Wire Wrap | Non Specified - Dual Edge | 8 | 8 | 8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 33.52 | |
Description
General part information
896-016 Series
16 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
