5304FE 008500

Active

Belden Inc.

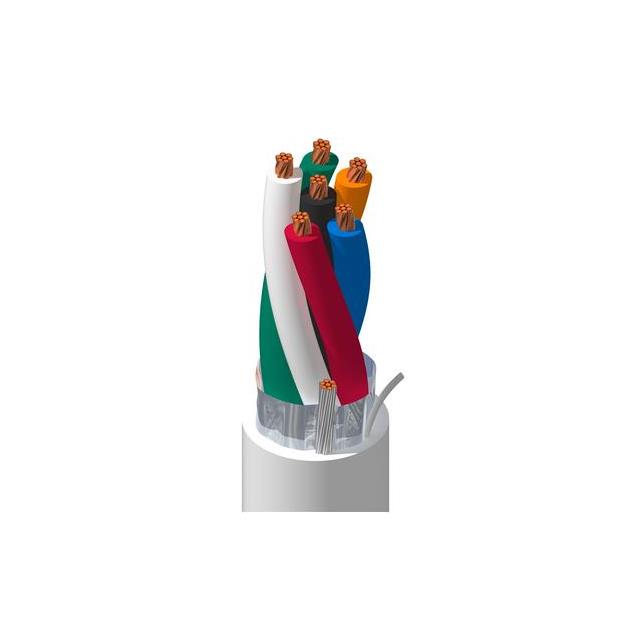

MULTICONDUCTOR CABLE, SECURITY AUDIO, SHIELDED, 6 CONDUCTOR, 18 AWG, 500 FT, 152.4 M

Search across all available documentation for this part.

Active

Belden Inc.

MULTICONDUCTOR CABLE, SECURITY AUDIO, SHIELDED, 6 CONDUCTOR, 18 AWG, 500 FT, 152.4 M

Technical Specifications

Parameters and characteristics for this part

Specification	5304FE 008500

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	5.69 mm
Jacket (Insulation) Diameter [diameter]	0.224 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.432 mm
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	6
Ratings	UL Style CMR
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Sound, Security
Voltage	300 V
Wire Gauge	18 AWG

Part	Ratings	Conductor Insulation	Wire Gauge	Voltage	Cable Type	Shield Coverage	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Number of Conductors	Length [x]	Length [x]	Conductor Material	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Jacket Color	Usage
Belden Inc. 5304FE 008500	UL Style CMR	Polypropylene (PP)	18 AWG	300 V	Multi-Conductor	100 %	Poly-Vinyl Chloride (PVC) Riser	26 AWG	7	Foil	6	500 '	152.4 m	Copper Bare	Aluminum	0.432 mm	0.017 in	5.69 mm	0.224 in	Drain Wire Rip Cord	Gray	Security Sound

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Conductor Multi-Conductor Cable Gray 18 AWG Foil 500.0' (152.4m)
