POS-195-S

Active

BUD INDUSTRIES

POWER DISTRIBUTION, RACK MOUNT, 8 OUTLETS, 125 V, 15 A, 482.6 MM, 44.5 MM, 4.57 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3D Product Image EN

POS-195-S

Active

BUD INDUSTRIES

POWER DISTRIBUTION, RACK MOUNT, 8 OUTLETS, 125 V, 15 A, 482.6 MM, 44.5 MM, 4.57 M

Deep-Dive with AI

DocumentsDatasheet 3D Product Image EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	POS-195-S

AC Outlets	8 outlets
Approval Agency	UL
Connector - AC Input	NEMA 5-15P
Connector - AC Output	NEMA 5-15R
Cord Length	12 ft
Cord Length	3.66 m
Energy	450 J
Housing Material	Steel
Mounting Type	Rack, Horizontal
Overload Protection	Circuit Breaker(s)
Region Utilized	North America
Type	Surge Protector, PDU
Voltage - Input	125 V
Weight	1.7 kg
Weight	3.8 lbs

POS-195 Series

POWER DISTRIBUTION, RACK MOUNT, 8 OUTLETS, 125 V, 15 A, 482.6 MM, 44.5 MM, 4.57 M

Part	Cord Length	Cord Length	Approval Agency	Overload Protection	Type	Mounting Type	Energy	Connector - AC Output	Housing Material	AC Outlets	Weight	Weight	Voltage - Input	Connector - AC Input	Region Utilized
BUD INDUSTRIES POS-195-S	12 ft	3.66 m	UL	Circuit Breaker(s)	PDU, Surge Protector	Rack, Horizontal	450 J	NEMA 5-15R	Steel	8 outlets	1.7 kg	3.8 lbs	125 V	NEMA 5-15P	North America

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 73.45
		25	$ 69.06
Newark	Each	1	$ 76.39
		5	$ 74.87
		10	$ 73.34
		25	$ 71.82

Description

General part information

POS-195 Series

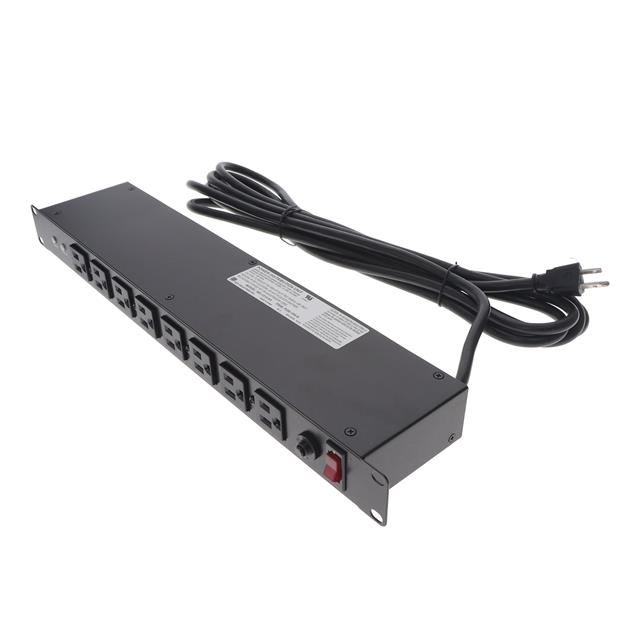

The POS-195-S is a rack-mount Power Outlet Strip is surge suppressed for use with your sensitive equipment. Have outlets located either on the front surface or on the rear surface for maximum versatility. Have 15ft long power cords with standard 3-prong AC plug to allow the POS strip to be mounted anywhere in the cabinet rack, in any size cabinet rack and to connect to any standard wall outlet. UL Recognized. Have convenient lighted power switches on front surface which also indicate if power is on or off.
