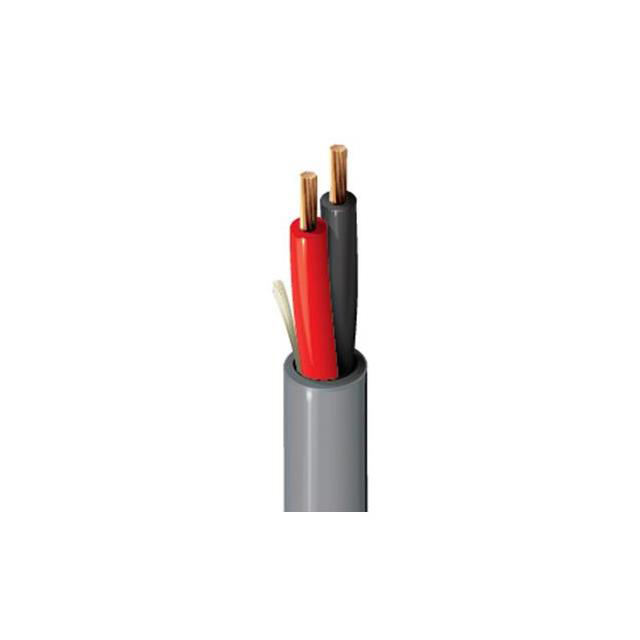

1309A 1SLU500

Obsolete

Belden Inc.

2 #14 PE FRPVC

Search across all available documentation for this part.

Obsolete

Belden Inc.

2 #14 PE FRPVC

Technical Specifications

Parameters and characteristics for this part

Specification	1309A 1SLU500

Cable Type	Speaker
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Bare
Conductor Strand [custom]	105
Conductor Strand [custom]	34 AWG
Features	Direct Burial
Jacket (Insulation) Diameter [diameter]	0.264 in
Jacket (Insulation) Diameter [diameter]	6.71 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.686 mm
Jacket (Insulation) Thickness	0.027 in
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Usage	Home, Audio-Video
Voltage	300 V
Wire Gauge	13.5 AWG

Part	Wire Gauge	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Jacket (Insulation) Material	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Features	Voltage	Jacket Color	Length	Length
Belden Inc. 1309A 1SLU500	13.5 AWG	Speaker	0.686 mm	0.027 in	Polyethylene (PE)	500 '	152.4 m	0.264 in	6.71 mm	Audio-Video Home	Poly-Vinyl Chloride (PVC)	2	105	34 AWG	Copper Bare	Direct Burial	300 V
Belden Inc. 1309A 0081000	13.5 AWG	Speaker	0.686 mm	0.027 in	Polyethylene (PE)			0.264 in	6.71 mm	Audio-Video Home	Poly-Vinyl Chloride (PVC)	2	105	34 AWG	Copper Bare	Direct Burial	300 V	Gray	1000 ft	304.8 m
Belden Inc. 1309A 010U500	13.5 AWG	Speaker	0.686 mm	0.027 in	Polyethylene (PE)	500 '	152.4 m	0.264 in	6.71 mm	Audio-Video Home	Poly-Vinyl Chloride (PVC)	2	105	34 AWG	Copper Bare	Direct Burial	300 V	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 Conductor Speaker Cable White 14 AWG 500.0' (152.4m)
