RT8206AGQW

Obsolete

Richtek USA Inc.

IC REG CTRLR NOTEBK 2OUT 32WQFN

Search across all available documentation for this part.

Obsolete

Richtek USA Inc.

IC REG CTRLR NOTEBK 2OUT 32WQFN

Technical Specifications

Parameters and characteristics for this part

Specification	RT8206AGQW

Applications	Controller, Notebook Power System
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

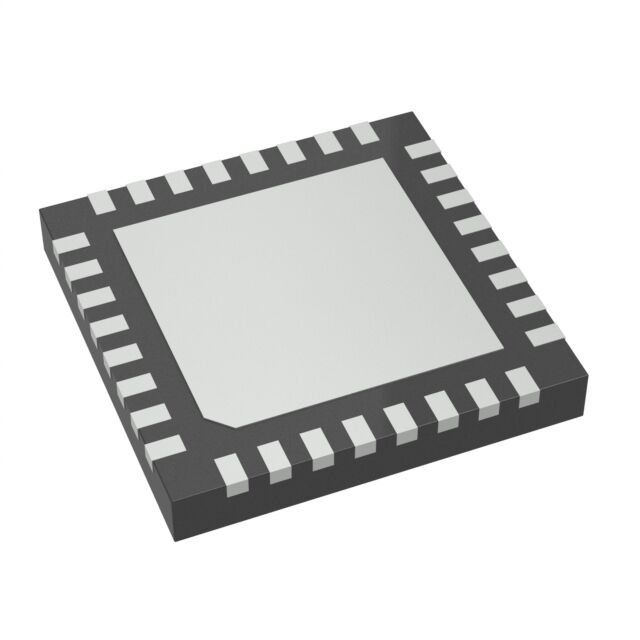

Supplier Device Package	32-WQFN (5x5)
Voltage - Input [Max]	25 V
Voltage - Input [Min]	6 V
Voltage - Output	5.5 V, 3.3 V
Voltage - Output [Max]	5.5 V
Voltage - Output [Min]	2 V

Part	Supplier Device Package	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Applications	Voltage - Output	Voltage - Output [Min]	Voltage - Output [Max]
Richtek USA Inc. RT8206AGQW	32-WQFN (5x5)	6 V	25 V	2	85 °C	-40 °C	Surface Mount	Controller Notebook Power System	3.3 V 5.5 V	2 V	5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

- Controller, Notebook Power System Voltage Regulator IC 2 Output 32-WQFN (5x5)
