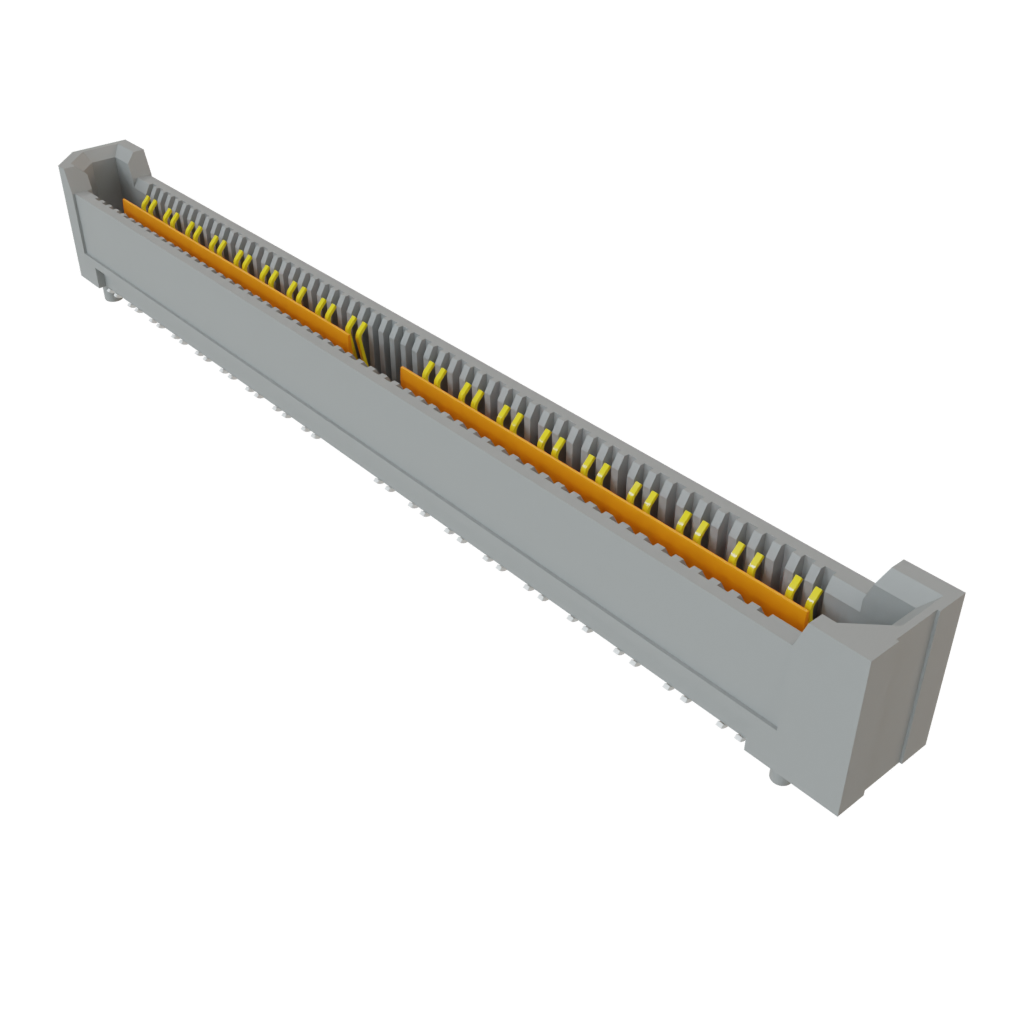

QRM8-036-02.0-L-D-DP-A

Active

Samtec Inc.

0.8MM 2 72P VERTICAL WELDING SMD,P=0.8MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS

Search across all available documentation for this part.

Active

Samtec Inc.

0.8MM 2 72P VERTICAL WELDING SMD,P=0.8MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	QRM8-036-02.0-L-D-DP-A

Connector Type	Differential Pair Array, Male
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Height Above Board [z]	0.189 in
Height Above Board [z]	4.8 mm
Mated Stacking Heights	7 mm, 9 mm
Mounting Type	Surface Mount
Number of Positions	72
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Connector Type	Mated Stacking Heights	Mounting Type	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish	Features	Height Above Board [z]	Height Above Board [z]
Samtec Inc. QRM8-036-05.0-L-D-DP-A-GP	Differential Pair Array Male	10 mm 12 mm	Surface Mount	0.307 in	7.8 mm	10 Áin	0.25 Ám	72	0.8 mm	0.031 in	2	Gold
Samtec Inc. QRM8-036-02.0-L-D-DP-A-K-TR	Differential Pair Array Male	7 mm 9 mm	Surface Mount			10 Áin	0.25 Ám	72	0.8 mm	0.031 in	2	Gold	Board Guide Ground Bus (Plane) Pick and Place	0.189 in	4.8 mm
Samtec Inc. QRM8-036-02.0-L-D-DP-A	Differential Pair Array Male	7 mm 9 mm	Surface Mount			10 Áin	0.25 Ám	72	0.8 mm	0.031 in	2	Gold		0.189 in	4.8 mm
Samtec Inc. QRM8-036-02.0-L-D-DP-A-GP	Differential Pair Array Male	7 mm 9 mm	Surface Mount			10 Áin	0.25 Ám	72	0.8 mm	0.031 in	2	Gold		0.189 in	4.8 mm
Samtec Inc. QRM8-036-05.0-S-D-DP-A-GP-K-TR	Differential Pair Array Male	10 mm 12 mm	Surface Mount	0.307 in	7.8 mm			72	0.8 mm	0.031 in	2	Gold	Board Guide Ground Bus (Plane) Pick and Place

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

72 Position Connector Differential Pair Array, Male Surface Mount Gold
