SFR-1/2-0-SP

Unknown

TE Connectivity Aerospace, Defense and Marine

HEAT SHRINK TUBING 1'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsThermofit SFR Tubing

SFR-1/2-0-SP

Unknown

TE Connectivity Aerospace, Defense and Marine

HEAT SHRINK TUBING 1'

Deep-Dive with AI

DocumentsThermofit SFR Tubing

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 614.45
		1	$ 140.57
		1	$ 1228.72

Description

General part information

SFR Series

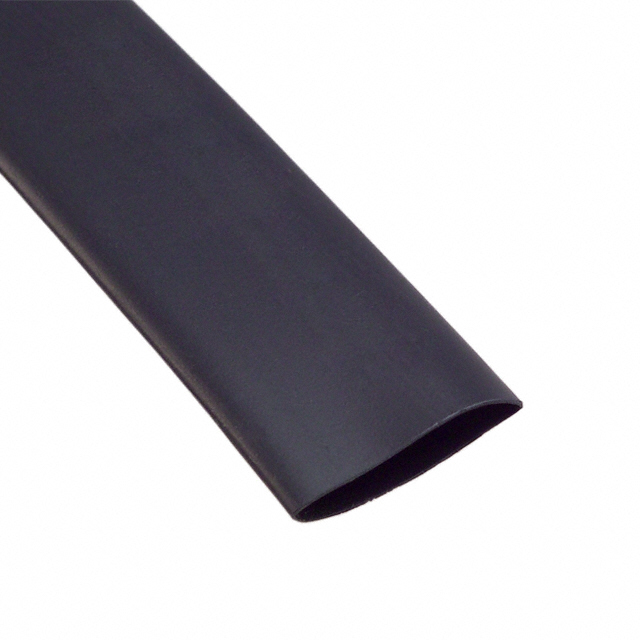

Heat Shrink Tubing, Flexible 0.500" (12.70mm) 1.75 to 1 Black 1.00' (304.80mm, 12.00")

Documents

Technical documentation and resources

Thermofit SFR Tubing

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SFR-1/2-0-SP	SFR Series

Color	Black	Black
Features	Fluid Resistant, Flame Retardant, Abrasion Resistant	Fluid Resistant, Flame Retardant, Abrasion Resistant
Inner Diameter - Recovered	-	9.09 mm
Inner Diameter - Recovered	-	0.358 in
Inner Diameter - Recovered [diameter]	0.286 in	0.07 - 0.428 in
Inner Diameter - Recovered [diameter]	7.26 mm	1.78 - 10.87 mm
Inner Diameter - Supplied [diameter]	12.7 mm	3.18 - 15.88 mm
Inner Diameter - Supplied [diameter]	0.5 in	0.125 - 0.625 in
Length	1.52 m, 7.6 m, 15.2 m	1.52 - 15.2 m
Length	5 ', 25 ft, 50 ft	5 - 50 '
Length	-	Enter Number of Feet in Order Quantity
Operating Temperature [Max]	180 °C	180 °C
Operating Temperature [Min]	-103 °F	-103 °F
Qualification	-	AMS-DTL-23053/1
Recovered Wall Thickness	0.048 in	0.048 - 1.45 in
Recovered Wall Thickness	1.22 mm	1.22 mm
Recovered Wall Thickness	-	0.035 - 0.052 in
Recovered Wall Thickness	-	0.025 "
Recovered Wall Thickness	-	0.64 mm
Recovered Wall Thickness	-	0.057 in
Shrink Temperature	135 C	135 C
Shrinkage Ratio [Max]	1.75	1.75
Shrinkage Ratio [Min]	1	1
Spool Size	-	61 m
Spool Size	-	200 '
Type	Tubing, Flexible	Tubing, Flexible

SFR Series

HEAT SHRINK TUBING 1'

Part	Length	Length	Shrink Temperature	Type	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Recovered Wall Thickness	Recovered Wall Thickness	Color	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Recovered Wall Thickness	Inner Diameter - Recovered	Inner Diameter - Recovered	Spool Size	Spool Size	Length	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Qualification	Recovered Wall Thickness [custom]
TE Connectivity Aerospace, Defense and Marine SFR-1/2-0-SP	1.52 m, 7.6 m, 15.2 m	5 ', 25 ft, 50 ft	135 C	Tubing, Flexible	12.7 mm	0.5 in	Abrasion Resistant, Flame Retardant, Fluid Resistant	-103 °F	180 °C	0.048 in	1.22 mm	Black	0.286 in	7.26 mm	1	1.75
TE Connectivity Aerospace, Defense and Marine SFR-1/4-0-SP	1.52 m, 15.2 m	5 ', 50 ft	135 C	Tubing, Flexible	6.4 mm	0.252 "	Abrasion Resistant, Flame Retardant, Fluid Resistant	-103 °F	180 °C	0.89 mm		Black	0.143 in	3.63 mm	1	1.75	0.035 in
TE Connectivity Aerospace, Defense and Marine SFR-5/8-0-SP	1.52 m, 7.6 m	5 ', 25 ft	135 C	Tubing, Flexible	15.88 mm	0.625 in	Abrasion Resistant, Flame Retardant, Fluid Resistant	-103 °F	180 °C	1.32 mm		Black			1	1.75	0.052 in	9.09 mm	0.358 in	61 m	200 '	Enter Number of Feet in Order Quantity
TE Connectivity Aerospace, Defense and Marine SFR-3/8-0-SP	1.52 m, 7.6 m, 15.2 m	5 ', 25 ft, 50 ft	135 C	Tubing, Flexible	9.53 mm	0.375 in	Abrasion Resistant, Flame Retardant, Fluid Resistant	-103 °F	180 °C	1.02 mm		Black	0.214 in	5.44 mm	1	1.75	0.04 in
TE Connectivity Aerospace, Defense and Marine SFR-1/8-0-SP	15.2 m	50 ft	135 C	Tubing, Flexible	3.18 mm	0.125 "	Abrasion Resistant, Flame Retardant, Fluid Resistant	-103 °F	180 °C			Black	0.07 in	1.78 mm	1	1.75							0.025 "	0.64 mm
TE Connectivity Aerospace, Defense and Marine SFR-3/4-0-SP	1.52 m, 7.6 m, 15.2 m	5 ', 25 ft, 50 ft	135 C	Tubing, Flexible			Abrasion Resistant, Flame Retardant, Fluid Resistant	-103 °F	180 °C	1.45 mm		Black	0.428 in	10.87 mm	1	1.75									AMS-DTL-23053/1	0.057 in
