842-044-541-207
ActiveEDAC Inc.

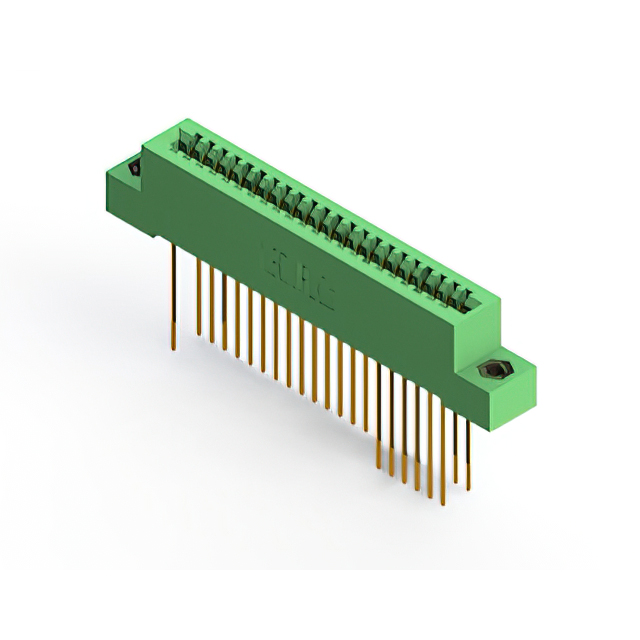

CONN EDGE DUAL FMALE 44POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
842-044-541-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 44POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 842-044-541-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 44 |
| Number of Positions/Bay/Row [custom] | 22 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
842-044 Series
...
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Material - Insulation | Card Type | Flange Feature | Pitch [x] | Pitch [x] | Termination Rows | Color | Number of Rows | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Gender | Number of Positions/Bay/Row [custom] | Mounting Type | Contact Finish | Contact Type | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Termination | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | 2.54 mm | 0.1 in | 2 | Green | 2 | Copper Alloy | 10 Áin | 0.25 Ám | Female | 22 | Through Hole | Gold | Cantilever | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | Solder Eyelet(s) | ||
EDAC Inc. | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | 2.54 mm | 0.1 in | 2 | Green | 2 | Copper Alloy | 10 Áin | 0.25 Ám | Female | 22 | Through Hole | Gold | Cantilever | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | Solder | ||
EDAC Inc. | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Floating Bobbin Flush Mount | 2.54 mm | 0.1 in | 2 | Green | 2 | Copper Alloy | 10 Áin | 0.25 Ám | Female | 22 | Through Hole | Gold | Cantilever | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | Solder | 0.116 in | 2.95 mm |
EDAC Inc. | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | 2.54 mm | 0.1 in | 2 | Green | 2 | Copper Alloy | 10 Áin | 0.25 Ám | Female | 22 | Through Hole | Gold | Cantilever | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | Solder | 0.128 " | 3.25 mm |
EDAC Inc. | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Floating Bobbin Flush Mount | 2.54 mm | 0.1 in | 2 | Green | 2 | Copper Alloy | 10 Áin | 0.25 Ám | Female | 22 | Through Hole | Gold | Cantilever | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | Solder Eyelet(s) | 0.116 in | 2.95 mm |
EDAC Inc. | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | 2.54 mm | 0.1 in | 2 | Green | 2 | Copper Alloy | 10 Áin | 0.25 Ám | Female | 22 | Through Hole | Gold | Cantilever | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | Wire Wrap | ||
EDAC Inc. | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | 2.54 mm | 0.1 in | 2 | Green | 2 | Copper Alloy | 10 Áin | 0.25 Ám | Female | 22 | Through Hole Right Angle | Gold | Cantilever | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | Solder | 0.156 in | 3.96 mm |
EDAC Inc. | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Flush Mount M3 Threaded Insert Top Opening | 2.54 mm | 0.1 in | 1 | Green | 1 | Copper Alloy | 10 Áin | 0.25 Ám | Female | 44 | Through Hole | Gold | Cantilever | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | Solder | ||
EDAC Inc. | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | 2.54 mm | 0.1 in | 1 | Green | 1 | Copper Alloy | 10 Áin | 0.25 Ám | Female | 44 | Through Hole | Gold | Cantilever | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | Solder Eyelet(s) | ||
EDAC Inc. | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | 2.54 mm | 0.1 in | 2 | Green | 2 | Copper Alloy | 10 Áin | 0.25 Ám | Female | 22 | Through Hole | Gold | Cantilever | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | Solder | 0.128 " | 3.25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
842-044 Series
44 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
