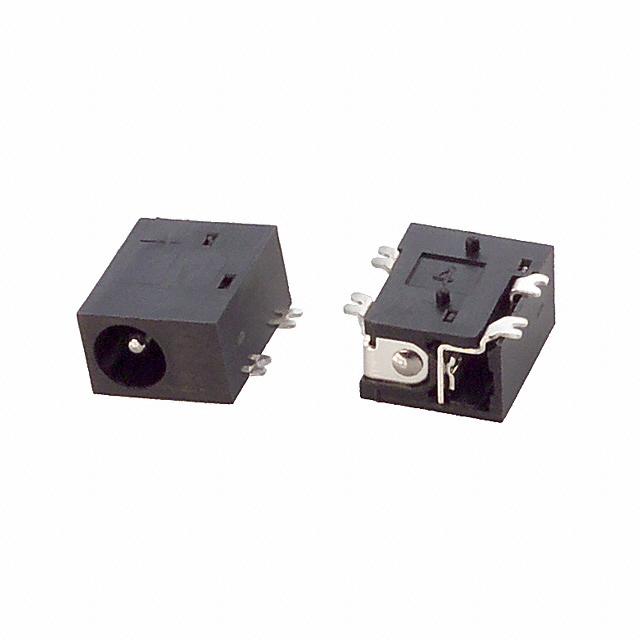

PJ-014DH-SMT-TR

Active

CUI Devices

CONN PWR JACK 1.3X3.4MM SOLDER

Search across all available documentation for this part.

Active

CUI Devices

CONN PWR JACK 1.3X3.4MM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-014DH-SMT-TR

Actual Diameter [diameter]	1.3 mm, 3.9 mm
Actual Diameter [diameter]	0.154 in, 0.051 in
Body Color	Black
Connector Type	Jack
Contact Material	Copper Alloy, Brass
Contact Material - Plating [custom]	Silver
Current Rating (Amps)	3.5 A
Features	Board Guide
Gender	Male
Housing Material	Polyamide (PA6T), Nylon 6T
Industry Recognized Mating Diameter [custom]	0.138 in
Industry Recognized Mating Diameter [custom]	3.5 mm
Industry Recognized Mating Diameter [custom]	1.3 mm
Industry Recognized Mating Diameter [custom]	0.051 in
Internal Switch(s)	Single Switch, Normally Closed
Material Flammability Rating	UL94 V-0
Mating Length/Depth	0.232 in
Mating Length/Depth	5.9 mm
Mounting Type	Surface Mount, Right Angle
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Termination	Solder
Voltage - Rated	24 VDC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Current Rating (Amps)	Contact Material - Plating [custom]	Shielding	Internal Switch(s)	Mating Length/Depth	Mating Length/Depth	Voltage - Rated	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Housing Material	Gender	Actual Diameter [diameter]	Actual Diameter [diameter]	Number of Positions/Contacts	Body Color	Mounting Type	Features	Termination	Material Flammability Rating	Connector Type	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]
CUI Devices PJ-014DH-SMT-TR	-25 °C	85 °C	Brass Copper Alloy	3.5 A	Silver	Unshielded	Normally Closed Single Switch	0.232 in	5.9 mm	24 VDC	0.138 in	3.5 mm	1.3 mm	0.051 in	Polyamide (PA6T) Nylon 6T	Male	1.3 mm 3.9 mm	0.051 in 0.154 in	2 Conductors 3 Conductors	Black	Surface Mount Right Angle	Board Guide	Solder	UL94 V-0	Jack
CUI Devices PJ-014CH-SMT-TR	-25 °C	85 °C	Brass Copper Alloy	3.5 A	Silver	Unshielded	Normally Closed Single Switch	0.232 in	5.9 mm	24 VDC					Polyamide (PA6T) Nylon 6T	Male			2 Conductors 3 Conductors	Black	Surface Mount Right Angle	Board Guide	Solder	UL94 V-0	Jack	0.039 " 0.134 "	1 mm 3.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Jack 1.30mm ID (0.051"), 3.50mm OD (0.138") Surface Mount, Right Angle
