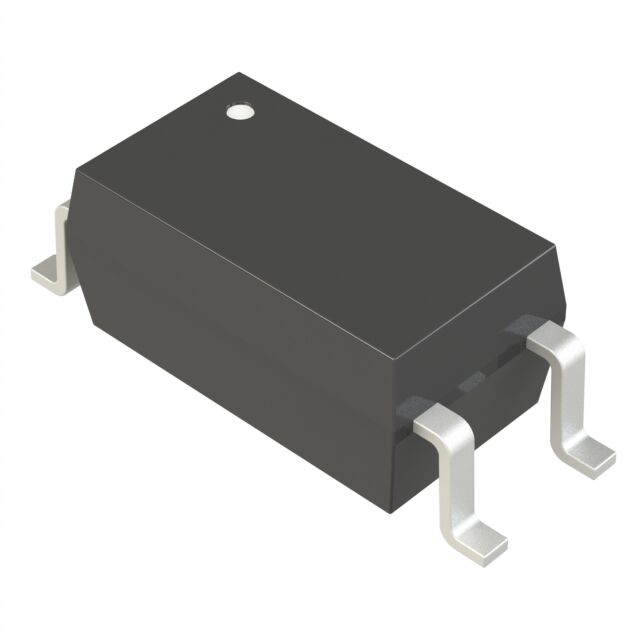

VOS617A-4X001T

Active

Vishay General Semiconductor - Diodes Division

OPTOISO 3.75KV 1CH TRANS 4-SSOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Option Information

VOS617A-4X001T

Active

Vishay General Semiconductor - Diodes Division

OPTOISO 3.75KV 1CH TRANS 4-SSOP

Deep-Dive with AI

DocumentsDatasheet Option Information

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VOS617A-4X001T

Current - DC Forward (If) (Max)	50 mA
Current - Output / Channel	50 mA
Current Transfer Ratio (Max) [Max]	320 %
Current Transfer Ratio (Min) [Min]	160 %
Input Type	DC
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Output Type	1.81 mOhm
Package / Case	4-SOIC
Package / Case [x]	0.173 in
Package / Case [y]	4.4 mm
Rise / Fall Time (Typ) [custom]	3 µs
Rise / Fall Time (Typ) [custom]	3 µs
Supplier Device Package	4-SSOP
Turn On / Turn Off Time (Typ)	6 µs, 4 µs
Vce Saturation (Max) [Max]	400 mV
Voltage - Forward (Vf) (Typ)	1.18 V
Voltage - Isolation	3750 Vrms

VOS617 Series

Part	Voltage - Forward (Vf) (Typ)	Turn On / Turn Off Time (Typ)	Mounting Type	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Current - DC Forward (If) (Max)	Vce Saturation (Max) [Max]	Number of Channels	Current Transfer Ratio (Min) [Min]	Package / Case [y]	Package / Case	Package / Case [x]	Input Type	Current Transfer Ratio (Max)	Supplier Device Package	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - Output / Channel	Current Transfer Ratio (Max) [Max]
Vishay General Semiconductor - Diodes Division VOS617A-3T	1.18 V	4 µs 6 µs	Surface Mount	3750 Vrms	-55 °C	110 °C	1.81 mOhm	50 mA	400 mV	1	100 %	4.4 mm	4-SOIC	0.173 in	DC	200 %	4-SOP	3 µs	3 µs	50 mA
Vishay General Semiconductor - Diodes Division VOS617A-7X001T	1.18 V	4 µs 6 µs	Surface Mount	3750 Vrms	-55 °C	110 °C	1.81 mOhm	50 mA	400 mV	1	80 %	4.4 mm	4-SOIC	0.173 in	DC		4-SSOP	3 µs	3 µs	50 mA	160 %
Vishay General Semiconductor - Diodes Division VOS617A-4X001T	1.18 V	4 µs 6 µs	Surface Mount	3750 Vrms	-55 °C	110 °C	1.81 mOhm	50 mA	400 mV	1	160 %	4.4 mm	4-SOIC	0.173 in	DC		4-SSOP	3 µs	3 µs	50 mA	320 %
Vishay General Semiconductor - Diodes Division VOS617A-9T	1.18 V	4 µs 6 µs	Surface Mount	3750 Vrms	-55 °C	110 °C	1.81 mOhm	50 mA	400 mV	1	200 %	4.4 mm	4-SOIC	0.173 in	DC	400 %	4-SSOP	3 µs	3 µs	50 mA
Vishay General Semiconductor - Diodes Division VOS617A-2X001T	1.18 V	4 µs 6 µs	Surface Mount	3750 Vrms	-55 °C	110 °C	1.81 mOhm	50 mA	400 mV	1	63 %	4.4 mm	4-SOIC	0.173 in	DC	125 %	4-SSOP	3 µs	3 µs	50 mA
Vishay General Semiconductor - Diodes Division VOS617A-8T	1.18 V	4 µs 6 µs	Surface Mount	3750 Vrms	-55 °C	110 °C	1.81 mOhm	50 mA	400 mV	1	130 %	4.4 mm	4-SOIC	0.173 in	DC	260 %	4-SSOP	3 µs	3 µs	50 mA
Vishay General Semiconductor - Diodes Division VOS617A-9X001T	1.18 V	4 µs 6 µs	Surface Mount	3750 Vrms	-55 °C	110 °C	1.81 mOhm	50 mA	400 mV	1	200 %	4.4 mm	4-SOIC	0.173 in	DC	400 %	4-SSOP	3 µs	3 µs	50 mA
Vishay General Semiconductor - Diodes Division VOS617A-X001T	1.18 V	4 µs 6 µs	Surface Mount	3750 Vrms	-55 °C	110 °C	1.81 mOhm	50 mA	400 mV	1	50 %	4.4 mm	4-SOIC	0.173 in	DC		4-SSOP	3 µs	3 µs	50 mA	600 %
Vishay General Semiconductor - Diodes Division VOS617AT	1.18 V	4 µs 6 µs	Surface Mount	3750 Vrms	-55 °C	110 °C	1.81 mOhm	50 mA	400 mV	1	50 %	4.4 mm	4-SOIC	0.173 in	DC		4-SSOP	3 µs	3 µs	50 mA	600 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.53
		10	$ 0.37
		100	$ 0.27
		500	$ 0.22
		1000	$ 0.20
	Digi-Reel®	1	$ 0.53
		10	$ 0.37
		100	$ 0.27
		500	$ 0.22
		1000	$ 0.20
	Tape & Reel (TR)	3000	$ 0.18
		6000	$ 0.17
		9000	$ 0.17
		15000	$ 0.16
		21000	$ 0.16
		30000	$ 0.16

Description

General part information

VOS617 Series

Optoisolator Transistor Output 3750Vrms 1 Channel 4-SSOP

Documents

Technical documentation and resources

Datasheet

Option Information

Datasheet
