282138-75

Active

Amphenol RF

CONN 1.0/2.3 0HZ TO 3GHZ 75OHM CRIMP ST CABLE MOUNT PL GOLD BAG

Search across all available documentation for this part.

Active

Amphenol RF

CONN 1.0/2.3 0HZ TO 3GHZ 75OHM CRIMP ST CABLE MOUNT PL GOLD BAG

Technical Specifications

Parameters and characteristics for this part

Specification	282138-75

Body Finish	Nickel
Body Material	Brass
Cable Group	195, Belden 1855, 180B, 1865A, 180A, 180, RG-122
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	1.0/2.3
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Frequency - Max [Max]	3 GHz
Housing Color	Silver
Impedance	75 Ohms

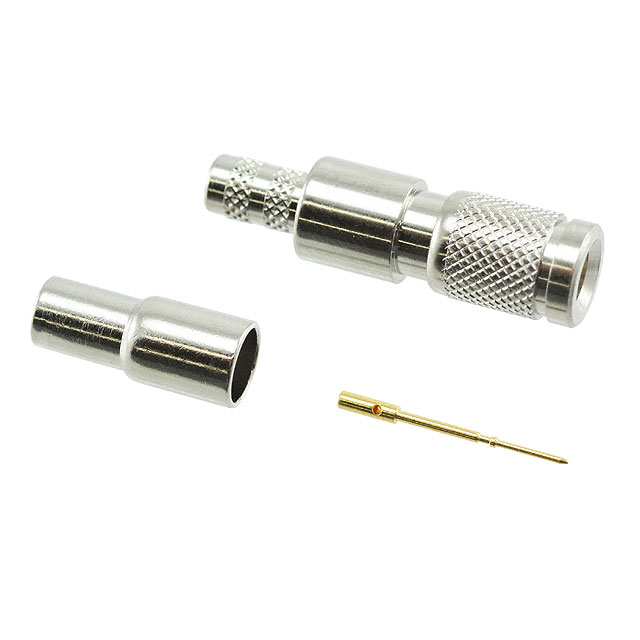

Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Frequency - Max [Max]	Connector Type	Impedance	Mating Cycles	Housing Color	Center Contact Plating	Body Material	Number of Ports	Body Finish	Cable Group	Connector Style	Includes	Shield Termination	Contact Termination	Mounting Type	Center Contact Material	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Voltage Rating
Amphenol RF 282138-75	3 GHz	Male Pin Plug	75 Ohms	500	Silver	Gold	Brass	1	Nickel	180 180A 180B 1865A 195 Belden 1855 RG-122	1.0/2.3	1 Connector 1 Contact 1 Ferrule	Crimp	Crimp	Free Hanging (In-Line)	Beryllium Copper Brass	Push-Pull	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.0/2.3 Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
