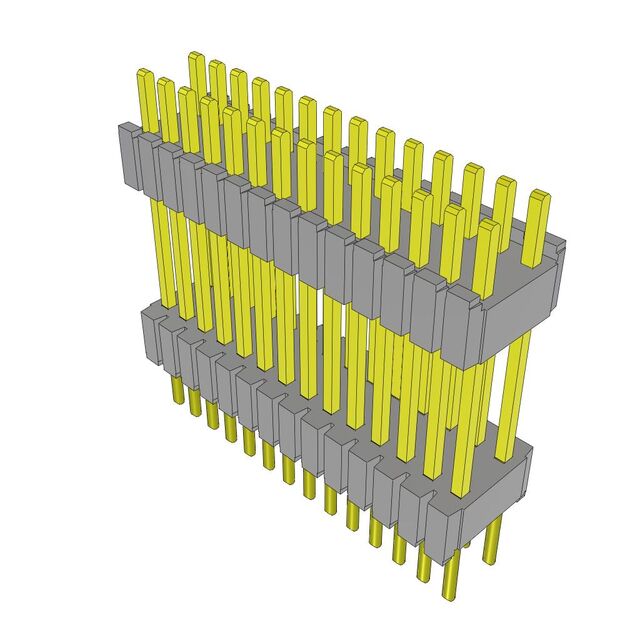

DWM-14-57-G-D-450

Active

Samtec Inc.

CONN HDR 28POS 0.05 STACK T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DWM-14-57-G-D-450

Active

Samtec Inc.

CONN HDR 28POS 0.05 STACK T/H

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DWM-14-57-G-D-450

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	16.51 mm
Length - Overall Pin [x]	0.65 in
Length - Stack Height [z]	0.45 in
Length - Stack Height [z]	11.43 mm
Length - Tail [x]	0.12 in
Length - Tail [x]	3.048 mm
Mounting Type	Through Hole
Number of Positions	28
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

DWM-14 Series

Part	Contact Finish - Post (Mating)	Termination	Number of Positions	Color	Number of Rows	Length - Stack Height [x]	Length - Stack Height [x]	Pitch [x]	Pitch [x]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Tail [x]	Length - Tail [x]	Mounting Type	Length - Overall Pin [x]	Length - Overall Pin [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Row Spacing [x]	Row Spacing	Length - Stack Height [z]	Length - Stack Height [z]	Length - Overall Pin	Length - Overall Pin
Samtec Inc. DWM-14-54-S-D-250	Gold	Solder	28	Black	2	0.25 in	6.35 mm	0.05 in	1.27 mm	4.699 mm	0.185 in	0.12 in	3.048 mm	Through Hole	0.555 in	14.097 mm	30 µin	0.76 µm	0.1 in	2.54 mm
Samtec Inc. DWM-14-54-G-S-315	Gold	Solder	14	Black	1	0.315 in	8 mm	0.05 in	1.27 mm	3.048 mm	0.12 in	0.12 in	3.048 mm	Through Hole	0.555 in	14.097 mm	10 Áin	0.25 Ám
Samtec Inc. DWM-14-61-L-D-900	Gold	Solder	28	Black	2	0.9 in	22.86 mm	0.05 in	1.27 mm	0.762 mm	0.03 in	0.12 in	3.048 mm	Through Hole	1.05 in	26.67 mm	10 Áin	0.25 Ám	0.1 in	2.54 mm
Samtec Inc. DWM-14-51-G-S-200	Gold	Solder	14	Black	1			0.05 in	1.27 mm	2.286 mm	0.09 in	0.12 in	3.048 mm	Through Hole	0.41 in	10.414 mm	10 Áin	0.25 Ám
Samtec Inc. DWM-14-61-G-D-800	Gold	Solder	28	Black	2	0.8 in	20.32 mm	0.05 in	1.27 mm	3.302 mm	0.13 in	0.12 in	3.048 mm	Through Hole	1.05 in	26.67 mm	10 Áin	0.25 Ám	0.1 in	2.54 mm
Samtec Inc. DWM-14-57-G-D-450	Gold	Solder	28	Black	2			0.05 in	1.27 mm			0.12 in	3.048 mm	Through Hole	0.65 in	16.51 mm	10 Áin	0.25 Ám	0.1 in	2.54 mm	0.45 in	11.43 mm
Samtec Inc. DWM-14-01-G-S-200	Gold	Solder	14	Black	1			0.05 in	1.27 mm	3.302 mm	0.13 in	0.12 in	3.048 mm	Through Hole			10 Áin	0.25 Ám					0.45 in	11.43 mm
Samtec Inc. DWM-14-01-G-S-240	Gold	Solder	14	Black	1	0.24 in	6.096 mm	0.05 in	1.27 mm	2.286 mm	0.09 in	0.12 in	3.048 mm	Through Hole			10 Áin	0.25 Ám					0.45 in	11.43 mm
Samtec Inc. DWM-14-61-L-S-610	Gold	Solder	14	Black	1			0.05 in	1.27 mm	8.128 mm	0.32 in	0.12 in	3.048 mm	Through Hole	1.05 in	26.67 mm	10 Áin	0.25 Ám			0.61 in	15.494 mm
Samtec Inc. DWM-14-52-G-S-230	Gold	Solder	14	Black	1			0.05 in	1.27 mm	1.905 mm	0.075 in	0.12 in	3.048 mm	Through Hole			10 Áin	0.25 Ám					0.425 in	10.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	32	$ 5.58

Description

General part information

DWM-14 Series

28 Position Header Spacer Connector 0.050" (1.27mm) Gold Through Hole
