1619FT Series

Part	Bearing Type	Air Flow	RPM	Voltage - Rated	Operating Temperature (Max)	Operating Temperature (Min)	Fan Type	Power (Watts)	Noise	Approval Agency	Termination Leads Count	Termination Type	Termination	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Static Pressure	Width	Features	Weight	Current Rating	Voltage Range (Min)	Voltage Range (Max)	Lifetime	Material - Frame	Material - Blade

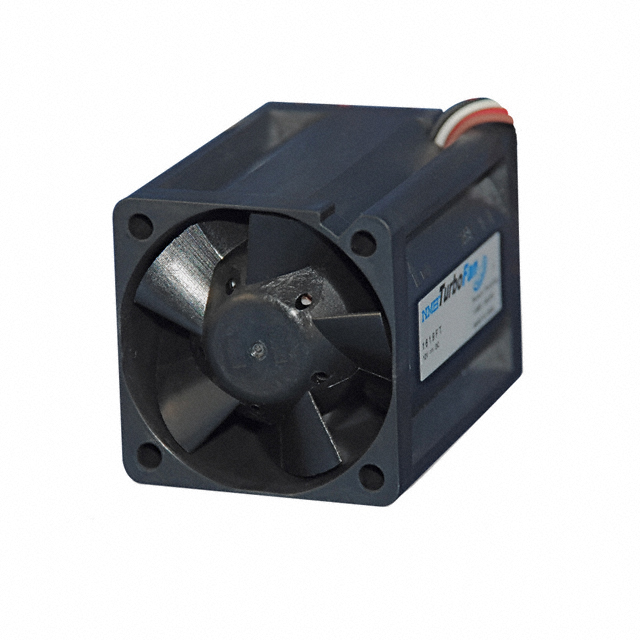

NMB TECHNOLOGIES 1619FT-04W-B86-B00	Ball	28.9 CFM	23000 RPM	12 VAC	140 °F	14 °F	Tubeaxial	12.6 W	62 dB	UL VDE	3	Wire Leads	3 Wire Leads	40 mm	Square	40 mm	3.29 in H2O	48 mm	Locked Rotor Sensor	0.156 lb	1.05 A	10.8 VDC	13.2 VDC	70000 Hrs	Plastic	Plastic
NMB TECHNOLOGIES 1619FT-04W-B86-B50	Ball	28.9 CFM	23000 RPM	12 VAC	140 °F	14 °F	Tubeaxial	12.6 W	62 dB	UL VDE	4 leads	Wire Leads	4 Wire Leads	40 mm	Square	40 mm	3.29 in H2O	48 mm	PWM Control Speed Sensor (Tach)	0.156 lb	1.05 A	10.8 VDC	13.2 VDC	70000 Hrs	Plastic	Plastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
