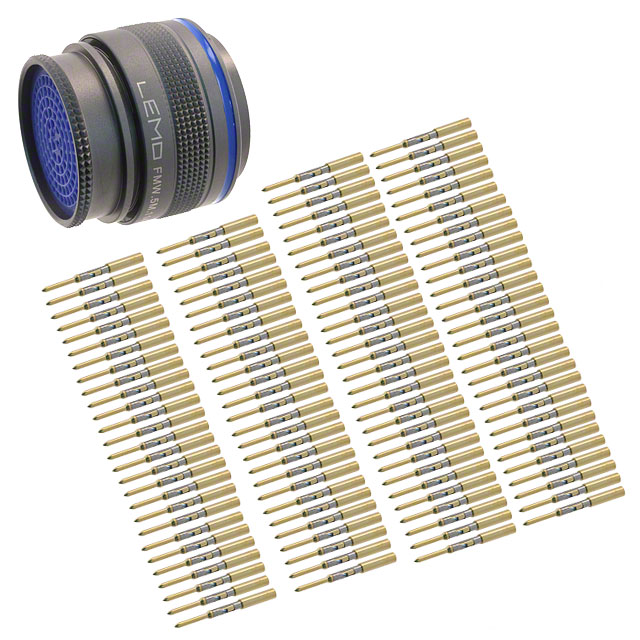

FMW.5M.114.XLCT

Active

LEMO

CONN PLUG MALE 114POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG MALE 114POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	FMW.5M.114.XLCT

Applications	Military, Aerospace, Automotive, Aviation
Cable Opening [custom]	28.5 mm
Cable Opening [custom]	1.122 in
Color	Gray
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Current Rating (Amps)	2 A
Features	Coupling Nut
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	114
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Orientation	W
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	114
Shielding	Shielded
Termination	Crimp

CONN PLUG MALE 114POS GOLD CRIMP

Part	Contact Finish - Mating	Ingress Protection	Features	Mounting Type	Orientation	Contact Material	Primary Material	Cable Opening [custom]	Cable Opening [custom]	Number of Positions	Shielding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Insert Material	Termination	Connector Type	Current Rating (Amps)	Shell Size - Insert	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Applications
LEMO FMW.5M.114.XLCT	Gold	IP68 - Dust Tight, Waterproof	Coupling Nut	Free Hanging (In-Line)	W	Brass	Metal	28.5 mm	1.122 in	114	Shielded	1 µm	39.4 µin	Nickel	Polyetheretherketone (PEEK)	Crimp	Male Pins, Plug	2 A	114	Aluminum Alloy	-55 °C	200 °C	Gray	Aerospace, Automotive, Aviation, Military

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

114 Position Circular Connector Plug, Male Pins Crimp
