WIZFI250-H

Obsolete

WIZnet

RF TXRX MOD WIFI TH+ U.FL SMD

Search across all available documentation for this part.

Obsolete

WIZnet

RF TXRX MOD WIFI TH+ U.FL SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

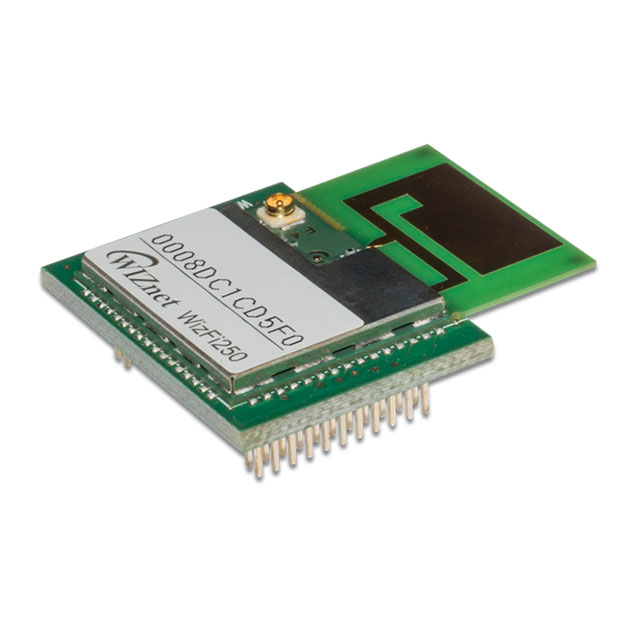

WiFi 802.11b/g/n Transceiver Module 2.4GHz Integrated, Trace + U.FL Surface Mount

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	WIZFI250-H	WIZFI250 Series

Antenna Type	Integrated, Trace + U.FL	PCB Trace, Integrated, Trace + U.FL
Current - Receiving	120 mA	120 mA
Current - Transmitting	385 mA	385 mA
Current - Transmitting	-	265 mA
Current - Transmitting	-	430 mA
Data Rate	65 Mbps	65 Mbps
For Use With/Related Products	-	WizFi250
Frequency	2.4 GHz	2.4 GHz
Memory Size	128 kB, 1 MB	1 - 128 kB
Modulation	QPSK, 64QAM, DSSS, CCK, BPSK, 16QAM, OFDM	QPSK, 64QAM, DSSS, CCK, BPSK, 16QAM, OFDM
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Package / Case	73-SMD Module	73-SMD Module
Power - Output	16.5 dBm	16.5 dBm
Protocol	802.11b/g/n	802.11b/g/n
RF Family/Standard	WiFi	WiFi
Sensitivity	-	-97 dBm
Serial Interfaces	UART, SPI	UART, SPI
Supplied Contents	-	Board(s)
Type	-	Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	3 V	3 V

RF TXRX MOD WIFI PCB TRACE SMD

Part	RF Family/Standard	Sensitivity	Frequency	Serial Interfaces	Power - Output	Antenna Type	Operating Temperature [Max]	Operating Temperature [Min]	Protocol	Mounting Type	Memory Size	Package / Case	Current - Transmitting [Min]	Current - Transmitting [Max]	Current - Receiving	Current - Transmitting	Modulation	Data Rate	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplied Contents	For Use With/Related Products	Type
WIZnet WIZFI250-PA	WiFi	-97 dBm	2.4 GHz	SPI, UART	16.5 dBm	PCB Trace	85 °C	-20 C	802.11b/g/n	Surface Mount	1 MB, 128 kB	73-SMD Module	265 mA	430 mA	120 mA
WIZnet WIZFI250-H	WiFi		2.4 GHz	SPI, UART	16.5 dBm	Integrated, Trace + U.FL	85 °C	-20 C	802.11b/g/n	Surface Mount	1 MB, 128 kB	73-SMD Module			120 mA	385 mA	16QAM, 64QAM, BPSK, CCK, DSSS, OFDM, QPSK	65 Mbps	3.6 V	3 V
WIZnet WIZFI250-EVB			2.4 GHz																		Board(s)	WizFi250	Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)
