EPG.00.302.HLN

Active

LEMO

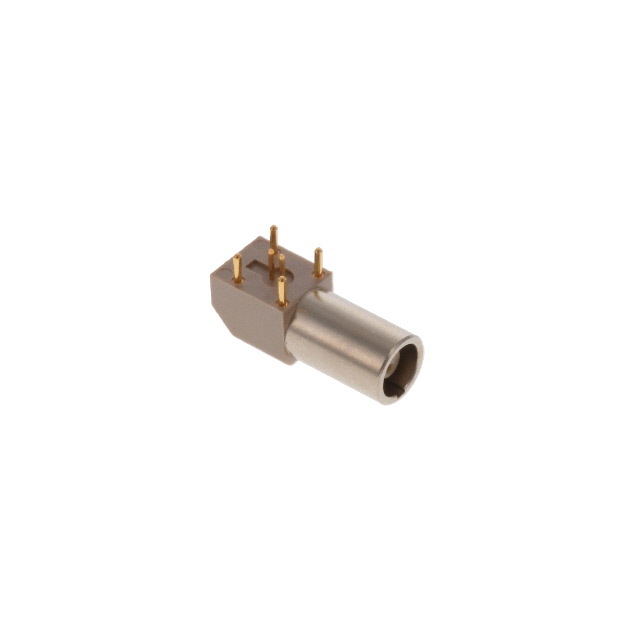

CONN RCPT FMALE 2POS GOLD SOLDER

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 2POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	EPG.00.302.HLN

Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Ground
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass and Polyphenylene Sulfide (PPS)
Shell Size - Insert	302
Shielding	Shielded
Termination	Solder

CONN RCPT FMALE 2POS GOLD SOLDER

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Insert Material	Contact Material	Contact Finish - Mating	Current Rating (Amps)	Shell Finish	Features	Ingress Protection	Number of Positions	Termination	Mounting Type	Connector Type	Shell Material	Fastening Type	Orientation	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Shell Size - Insert
LEMO EPG.00.302.HLN	59 Áin	1.5 Ám	Metal	Polyetheretherketone (PEEK)	Bronze	Gold	2 A	Nickel	Ground	IP50	2	Solder	Through Hole, Right Angle	Receptacle, Female Sockets	Brass and Polyphenylene Sulfide (PPS)	Push-Pull	G	Shielded	-55 °C	250 °C	UL94 V-0	302

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Female Sockets Solder
