FTMH-111 Series

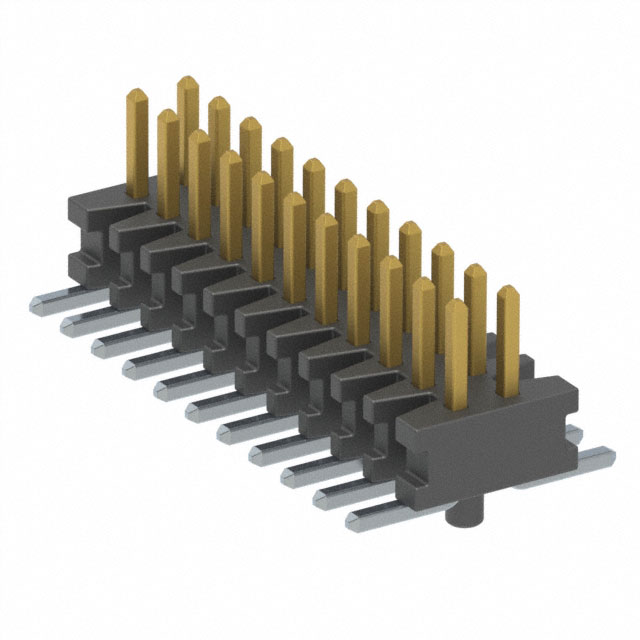

Connector Header Surface Mount 22 position 0.039" (1.00mm)

Technical Specifications

Parameters and characteristics for this part

Specification	FTMH-111-02-F-DV-A

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Length - Mating	0.075 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Per Contact)	2.8 A
Fastening Type	Push-Pull
Features	End Shrouds
Insulation Color	Black
Insulation Height	0.059 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	22
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.039 in
Row Spacing - Mating	0.039 in
Shrouding	Unshrouded
Style	Board
Termination	Solder

FTMH-111 Series

Part	Insulation Color	Contact Shape	Operating Temperature (Max)	Operating Temperature (Min)	Contact Length - Mating	Row Spacing - Mating	Contact Type	Contact Finish Thickness - Mating	Number of Rows	Contact Finish - Post	Pitch - Mating	Connector Type	Insulation Material	Number of Positions Loaded	Shrouding	Number of Positions	Material Flammability Rating	Style	Insulation Height	Termination	Current Rating (Per Contact)	Contact Material	Fastening Type	Contact Finish - Mating	Mounting Type	Features	Contact Finish Thickness - Post
Samtec Inc. FTMH-111-03-L-DH	Black	Square	125 °C	-55 °C	0.065 in	0.039 in	Male Pin	10 µin	2	Tin	0.039 in	Header	Liquid Crystal Polymer (LCP)	All	Unshrouded	22	UL94 V-0	Board	0.125 in	Solder	2.8 A	Phosphor Bronze	Push-Pull	Gold	Right Angle Surface Mount
Samtec Inc. FTMH-111-02-L-DV-ES-A-P-TR	Black	Square	125 °C	-55 °C	0.075 in	0.039 in	Male Pin	10 µin	2	Tin	0.039 in	Header	Liquid Crystal Polymer (LCP)	All	Unshrouded	22	UL94 V-0	Board	0.059 in	Solder	2.8 A	Phosphor Bronze	Push-Pull	Gold	Surface Mount	Board Guide End Shrouds Pick and Place
Samtec Inc. FTMH-111-02-F-DV	Black	Square	125 °C	-55 °C	0.075 in	0.039 in	Male Pin	3 µin	2	Tin	0.039 in	Header	Liquid Crystal Polymer (LCP)	All	Unshrouded	22	UL94 V-0	Board	0.059 in	Solder	2.8 A	Phosphor Bronze	Push-Pull	Gold	Surface Mount
Samtec Inc. FTMH-111-03-F-DV-P	Black	Square	125 °C	-55 °C	0.065 in	0.039 in	Male Pin	3 µin	2	Tin	0.039 in	Header	Liquid Crystal Polymer (LCP)	All	Unshrouded	22	UL94 V-0	Board	0.059 in	Solder	2.8 A	Phosphor Bronze	Push-Pull	Gold	Surface Mount	Pick and Place
Samtec Inc. FTMH-111-02-H-DV-ES-P-TR	Black	Square	125 °C	-55 °C	0.075 in	0.039 in	Male Pin	30 µin	2	Gold	0.039 in	Header	Liquid Crystal Polymer (LCP)	All	Unshrouded	22	UL94 V-0	Board	0.059 in	Solder	2.8 A	Phosphor Bronze	Push-Pull	Gold	Surface Mount	End Shrouds Pick and Place	3 µin
Samtec Inc. FTMH-111-03-H-DV	Black	Square	125 °C	-55 °C	0.065 in	0.039 in	Male Pin	30 µin	2	Gold	0.039 in	Header	Liquid Crystal Polymer (LCP)	All	Unshrouded	22	UL94 V-0	Board	0.059 in	Solder	2.8 A	Phosphor Bronze	Push-Pull	Gold	Surface Mount		3 µin
Samtec Inc. FTMH-111-03-L-DV-ES-A	Black	Square	125 °C	-55 °C	0.065 in	0.039 in	Male Pin	10 µin	2	Tin	0.039 in	Header	Liquid Crystal Polymer (LCP)	All	Unshrouded	22	UL94 V-0	Board	0.059 in	Solder	2.8 A	Phosphor Bronze	Push-Pull	Gold	Surface Mount	Board Guide End Shrouds
Samtec Inc. FTMH-111-02-F-DV-A	Black	Square	125 °C	-55 °C	0.075 in	0.039 in	Male Pin	3 µin	2	Tin	0.039 in	Header	Liquid Crystal Polymer (LCP)	All	Unshrouded	22	UL94 V-0	Board	0.059 in	Solder	2.8 A	Phosphor Bronze	Push-Pull	Gold	Surface Mount	End Shrouds
Samtec Inc. FTMH-111-03-L-DH-K	Black	Square	125 °C	-55 °C	0.065 in	0.039 in	Male Pin	10 µin	2	Tin	0.039 in	Header	Liquid Crystal Polymer (LCP)	All	Unshrouded	22	UL94 V-0	Board	0.125 in	Solder	2.8 A	Phosphor Bronze	Push-Pull	Gold	Right Angle Surface Mount	Pick and Place
Samtec Inc. FTMH-111-03-L-DV-ES-TR	Black	Square	125 °C	-55 °C	0.065 in	0.039 in	Male Pin	10 µin	2	Tin	0.039 in	Header	Liquid Crystal Polymer (LCP)	All	Unshrouded	22	UL94 V-0	Board	0.059 in	Solder	2.8 A	Phosphor Bronze	Push-Pull	Gold	Surface Mount	End Shrouds
