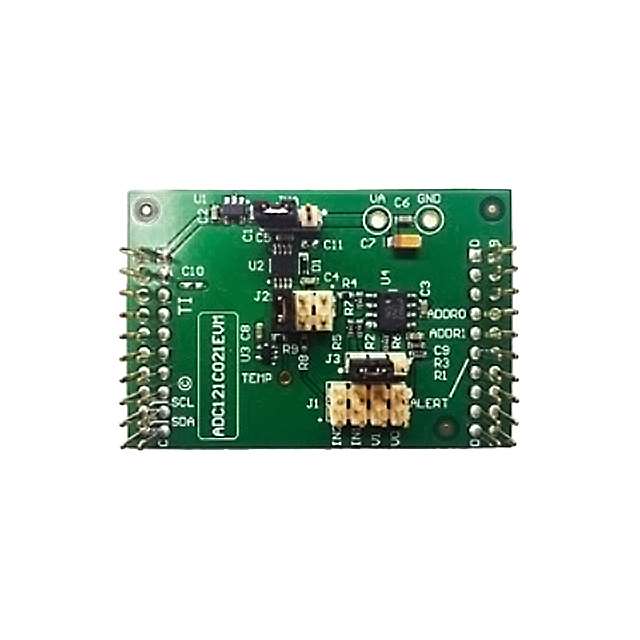

ADC121C021EVM

Active

Texas Instruments

EVAL BOARD FOR ADC121C021

Find alt

Alpha

ADC121C021EVM

Active

Texas Instruments

EVAL BOARD FOR ADC121C021

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

ADC121 Series

The ADC121S101 is a low-power, single-channel CMOS 12-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC121S101 is fully specified over a sample rate range of 500 ksps to 1 Msps. The converter is based upon a successive-approximation register architecture with an internal track-and-hold circuit.

The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE, and many common DSP serial interfaces.

The ADC121S101 operates with a single supply with a range from 2.7 V to 5.25 V. Normal power consumption using a 3 V or 5 V supply is 2 mW and 10 mW, respectively. The power-down feature reduces the power consumption to as low as 2.6 µW using a 5-V supply.

Technical Specifications

Parameters and characteristics for this part

Specification	ADC121C021EVM

Contents	Board
Data Interface	Serial
Input Voltage (Max)	5.5 V
Input Voltage (Min)	0 mV
Number of A/D Converters	1 count
Number of Bits	12 bits
Power (Typ)	3.67 mw
Sampling Rate (Per Second)	188.9 kHz
Supplied Contents	Board(s)
Utilized IC / Part	ADC121C021

ADC121 Series

Automotive Single Channel, 0.5 to 1 Msps, 12-Bit A/D Converter

Part	Supplied Contents	Number of Bits	Input Voltage (Min)	Input Voltage (Max)	Data Interface	Utilized IC / Part	Power (Typ)	Contents	Number of A/D Converters	Sampling Rate (Per Second)	Input Type	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Architecture	Reference Type	Number of Inputs	Configuration	Package / Case	Ratio - ADC	Ratio - S/H	Package Name	Package Width	Package Length	Number of Inputs	Voltage - Supply, Digital	Voltage - Supply, Analog
Texas Instruments ADC121C02XEB/NOPB	Board(s)	12 bits	0 mV	5.5 V	Serial	ADC121C021 ADC121C027	3.67 mw	Board	1 count	188.9 kHz
Texas Instruments ADC121S051CIMF		12 bits			DSP SPI				1 count	500 kHz	Single Ended	5.25 V	2.7 V	Surface Mount	-40 °C	85 °C	2.7 V	5.25 V	SAR	Supply	1	S/H-ADC	SOT-23-6	1	1	SOT-23-6
Texas Instruments ADC12138CIMSA		12 bits			SPI				1 count	114 kHz	Differential Pseudo-Differential Single Ended	5.5 V	3 V	Surface Mount	-40 °C	85 °C	3 V	5.5 V	SAR	External		MUX-S/H-ADC		1	1	28-SSOP	5.3 mm	0.209 in	4 8
Texas Instruments ADC121S625CIMM		12 bits			DSP SPI				1 count	200 kHz	Differential Single Ended			Surface Mount	-40 °C	85 °C			SAR	External	1	S/H-ADC		1	1	8-TSSOP 8-MSOP 8-VSSOP	3 mm	0.118 in		5 V	5 V
Texas Instruments ADC12138CIWMX		12 bits			SPI				1 count	114 kHz	Differential Pseudo-Differential Single Ended	5.5 V	3 V	Surface Mount	-40 °C	85 °C	3 V	5.5 V	SAR	External		MUX-S/H-ADC		1	1	28-SOIC	7.5 mm	0.295 in	4 8
Texas Instruments ADC121S101CIMF		12 bits			DSP SPI				1 count	1 MHz	Single Ended	5.25 V	2.7 V	Surface Mount	-40 °C	125 °C	2.7 V	5.25 V	SAR	Supply	1	S/H-ADC	SOT-23-6	1	1	SOT-23-6
Texas Instruments ADC12130CIWMX		12 bits			SPI				1 count	114 kHz	Differential Pseudo-Differential Single Ended	5.5 V	3 V	Surface Mount	-40 °C	85 °C	3 V	5.5 V	SAR	External		MUX-S/H-ADC		1	1	16-SOIC	7.5 mm	0.295 in	1 2
Texas Instruments ADC121S625CIMMX		12 bits			DSP SPI				1 count	200 kHz	Differential Single Ended			Surface Mount	-40 °C	85 °C			SAR	External	1	S/H-ADC		1	1	8-TSSOP 8-MSOP 8-VSSOP	3 mm	0.118 in		5 V	5 V
Texas Instruments ADC12132CIMSA		12 bits			SPI				1 count	114 kHz	Differential Pseudo-Differential Single Ended	5.5 V	3 V	Surface Mount	-40 °C	85 °C	3 V	5.5 V	SAR	External		MUX-S/H-ADC		1	1	20-SSOP	5.3 mm	0.209 in	1 2
Texas Instruments ADC12130CIWM		12 bits			SPI				1 count	114 kHz	Differential Pseudo-Differential Single Ended	5.5 V	3 V	Surface Mount	-40 °C	85 °C	3 V	5.5 V	SAR	External		MUX-S/H-ADC		1	1	16-SOIC	7.5 mm	0.295 in	1 2
