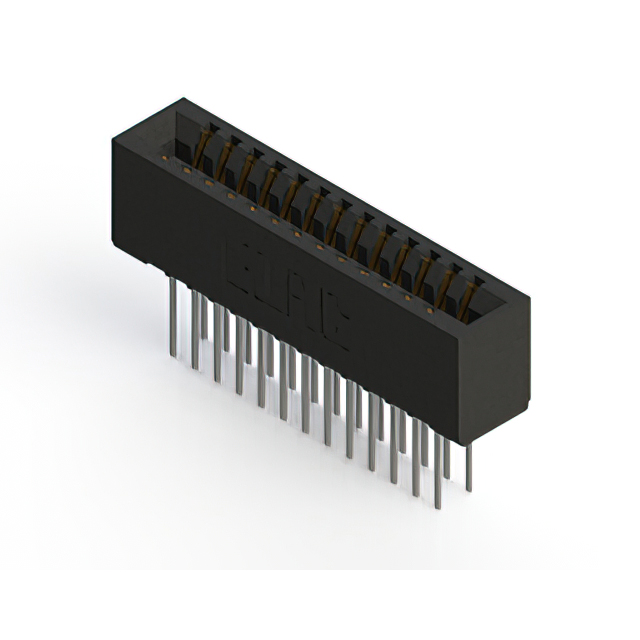

391-026-522-201

Active

EDAC Inc.

2.54MM 26P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Card Edge Brochure

391-026-522-201

Active

EDAC Inc.

2.54MM 26P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet Card Edge Brochure

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	391-026-522-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	26
Number of Positions/Bay/Row [custom]	13
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

391-026 Series

Part	Termination Rows	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Mounting Type	Contact Material	Read Out	Card Type	Material - Insulation	Number of Positions	Contact Type	Gender	Color	Pitch [x]	Pitch [x]	Termination	Features	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]
EDAC Inc. 391-026-522-201	2	2	-40 °C	105 ░C	10 Áin	0.25 Ám	13	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Through Hole	Copper Alloy	Dual	Non Specified - Dual Edge	Polyester Thermoplastic	26	Semi Bellows	Female	Black	2.54 mm	0.1 in	Solder
EDAC Inc. 391-026-555-203	2	2	-40 °C	105 ░C	10 Áin	0.25 Ám	13	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Through Hole	Copper Alloy	Dual	Non Specified - Dual Edge	Polyester Thermoplastic	26	Semi Bellows	Female	Black	2.54 mm	0.1 in	Solder Eyelet(s)	Card Extender	0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 391-026-521-204	2	2	-40 °C	105 ░C	10 Áin	0.25 Ám	13	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Through Hole	Copper Alloy	Dual	Non Specified - Dual Edge	Polyester Thermoplastic	26	Semi Bellows	Female	Black	2.54 mm	0.1 in	Solder		0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm
EDAC Inc. 391-026-522-203	2	2	-40 °C	105 ░C	10 Áin	0.25 Ám	13	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Through Hole	Copper Alloy	Dual	Non Specified - Dual Edge	Polyester Thermoplastic	26	Semi Bellows	Female	Black	2.54 mm	0.1 in	Solder		0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 391-026-524-102	1	1	-40 °C	105 ░C	10 Áin	0.25 Ám	26	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Through Hole	Copper Alloy	Single	Non Specified - Single Edge	Polyester Thermoplastic	26	Semi Bellows	Female	Black	2.54 mm	0.1 in	Solder		0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm
EDAC Inc. 391-026-556-201	2	2	-40 °C	105 ░C	10 Áin	0.25 Ám	13	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Board Edge Straddle Mount	Copper Alloy	Dual	Non Specified - Dual Edge	Polyester Thermoplastic	26	Semi Bellows	Female	Black	2.54 mm	0.1 in	Solder	Card Extender
EDAC Inc. 391-026-560-204	2	2	-40 °C	105 ░C	10 Áin	0.25 Ám	13	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Through Hole	Copper Alloy	Dual	Non Specified - Dual Edge	Polyester Thermoplastic	26	Semi Bellows	Female	Black	2.54 mm	0.1 in	Solder	Card Extender	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm
EDAC Inc. 391-026-521-107	1	1	-40 °C	105 ░C	10 Áin	0.25 Ám	26	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Through Hole	Copper Alloy	Single	Non Specified - Single Edge	Polyester Thermoplastic	26	Semi Bellows	Female	Black	2.54 mm	0.1 in	Solder			Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 391-026-520-208	2	2	-40 °C	105 ░C	10 Áin	0.25 Ám	13	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Through Hole	Copper Alloy	Dual	Non Specified - Dual Edge	Polyester Thermoplastic	26	Semi Bellows	Female	Black	2.54 mm	0.1 in	Solder			4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 391-026-524-208	2	2	-40 °C	105 ░C	10 Áin	0.25 Ám	13	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Through Hole	Copper Alloy	Dual	Non Specified - Dual Edge	Polyester Thermoplastic	26	Semi Bellows	Female	Black	2.54 mm	0.1 in	Solder			4-40 Flush Mount Threaded Insert Top Opening

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 9.49
LCSC	Piece	1	$ 10.83
		200	$ 4.19
		500	$ 4.04
		1000	$ 3.97

Description

General part information

391-026 Series

26 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
