18-188.035
ActiveEAO

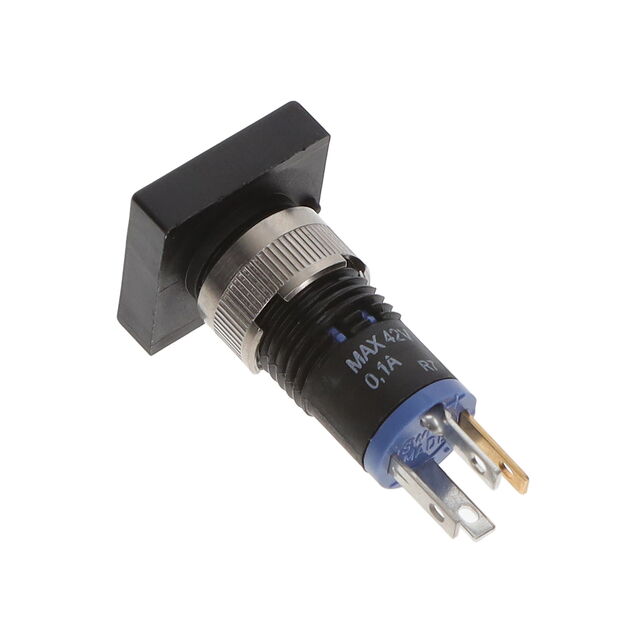

SWITCH PB SPST-NC 0.1A 42V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
18-188.035
ActiveEAO
SWITCH PB SPST-NC 0.1A 42V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 18-188.035 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Square, Button (Not Included) |
| Circuit | SPST-NC |
| Current Rating (Amps) | 100 mA |
| Electrical Life | 50000 Cycles |
| Ingress Protection | IP40 |
| Mechanical Life | 2000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -25 °C |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 42 V |
| Voltage Rating - DC | 42 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.89 | |
| 10 | $ 18.97 | |||
| 25 | $ 18.12 | |||
| 50 | $ 17.16 | |||
| 100 | $ 16.52 | |||
| 250 | $ 15.45 | |||
| 500 | $ 13.19 | |||
18-188 Series
SWITCH PB SPST-NC 0.1A 42V
| Part | Actuator Type | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Voltage Rating - DC | Mechanical Life | Termination Style | Type | Current Rating (Amps) | Switch Function | Ingress Protection | Mounting Type | Actuator Marking | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 18-188.035 | Square, Button (Not Included) | SPST-NC | 65 °C | -25 °C | 42 V | 42 V | 2000000 Cycles | Solder Lug | Standard | 100 mA | On-Mom | IP40 | Panel Mount, Front | No Marking | 50000 Cycles |
Description
General part information
18-188 Series
Pushbutton Switch SPST-NC Standard Panel Mount, Front
