Q-2602K000M001M
ActiveAmphenol Custom Cable

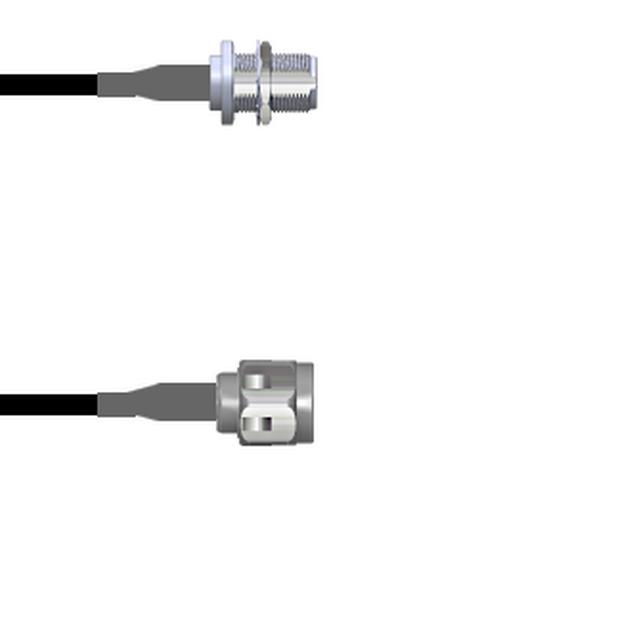

CBL ASSY NTYPE JACK TO PLUG 3.3'
Deep-Dive with AI
Search across all available documentation for this part.
Q-2602K000M001M
ActiveAmphenol Custom Cable
CBL ASSY NTYPE JACK TO PLUG 3.3'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2602K000M001M |
|---|---|
| 1st Connector | N-Type Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | LMR 240 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length | 1 m |
| Length | 3.3 ft |
| Length | 39.4 in |
| Overall Impedance | 50 Ohms |
| Style | N-Type to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 135.65 | |
| 25 | $ 133.07 | |||
| 50 | $ 130.48 | |||
| 100 | $ 127.90 | |||
| 250 | $ 125.31 | |||
Description
General part information
Q-2602K0 Series
Cable Assembly Coaxial N-Type to N-Type LMR 240 39.4" (1.0m) 3.3'
Documents
Technical documentation and resources
No documents available
