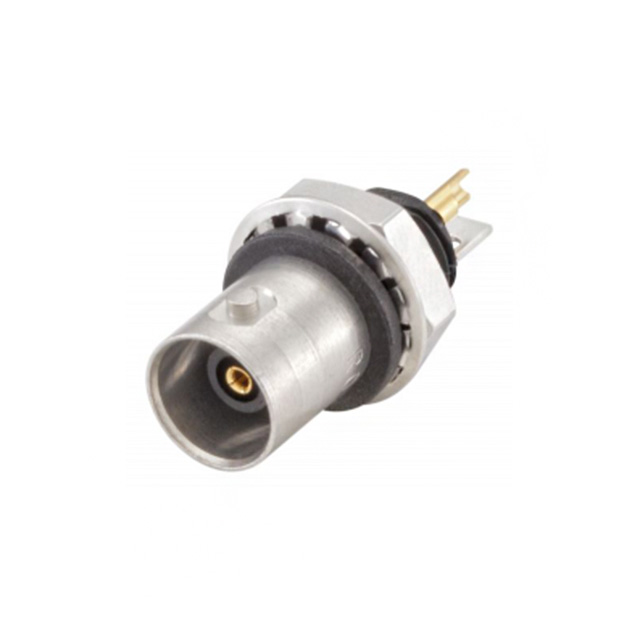

51K553-200N5
ActiveRosenberger
CONN BNC JACK STR 50OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
51K553-200N5
ActiveRosenberger
CONN BNC JACK STR 50OHM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 51K553-200N5 |
|---|---|
| Body Finish | White Bronze |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder Cup |
| Dielectric Material | Polypropylene (PP) |
| Fastening Type | Bayonet Lock |
| Features | Extended Insulation |
| Frequency - Max [Max] | 10 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 Nut, 1 Connector, 1 Lockwasher |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 300 | $ 11.65 | |
Description
General part information
51K553 Series
BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
