4282-6PG-300 - 4282-6PG-300

4282-6PG-300

Active

Conxall/Switchcraft

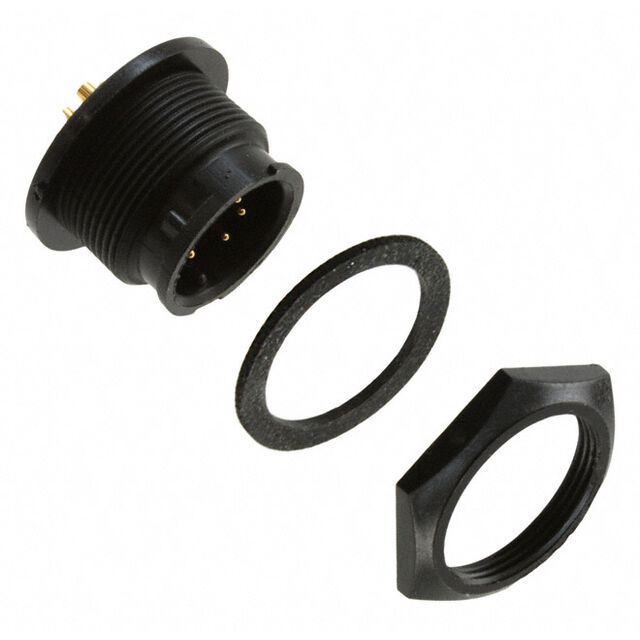

CONN RCPT MALE 6P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCable Assemblies & Connectors Catalog Multi-Con-X Sealed Connectors and Cables +1

4282-6PG-300 - 4282-6PG-300

4282-6PG-300

Active

Conxall/Switchcraft

CONN RCPT MALE 6P GOLD SLDR CUP

Deep-Dive with AI

DocumentsCable Assemblies & Connectors Catalog Multi-Con-X Sealed Connectors and Cables +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.15
		10	$ 9.89
		100	$ 8.62
		1000	$ 6.74

Description

General part information

4282-6P Series

6 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

Cable Assemblies & Connectors Catalog

Multi-Con-X Sealed Connectors and Cables

Related Document

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	4282-6PG-300	4282-6P Series

Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	5.6 A	5.6 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	Weathertight	Weathertight
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Number of Positions	6	6
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

4282-6P Series

CONN RCPT MALE 6P GOLD SLDR CUP

Part	Color	Ingress Protection	Voltage Rating	Connector Type	Contact Material	Mounting Feature	Number of Positions	Shielding	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Fastening Type	Primary Material	Orientation
Conxall/Switchcraft 4282-6PG-3ES	Black	Weathertight	600 V	Male Pins, Receptacle	Brass	Bulkhead - Front Side Nut	6	Unshielded	Gold	-40 °C	115 °C	5.6 A	Bayonet Lock	Plastic	Keyed
Conxall/Switchcraft 4282-6PG-300	Black	Weathertight	600 V	Male Pins, Receptacle	Brass	Bulkhead - Front Side Nut	6	Unshielded	Gold	-40 °C	115 °C	5.6 A	Bayonet Lock	Plastic	Keyed
