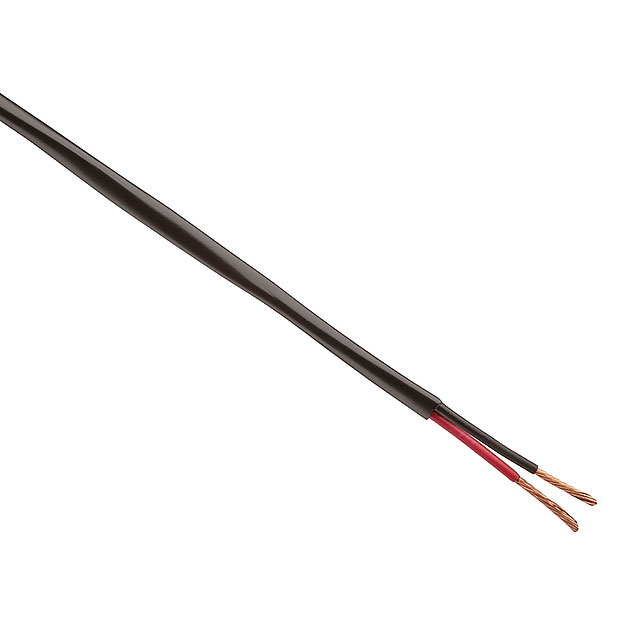

5200UE 0081000

Active

Belden Inc.

CABLE 2COND 16AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 16AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	5200UE 0081000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	29 AWG
Jacket (Insulation) Diameter [diameter]	4.57 mm
Jacket (Insulation) Diameter [diameter]	0.18 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.432 mm
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Usage	Commercial Audio
Wire Gauge	16 AWG

Part	Features	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Voltage	Length [x]	Length [x]	Conductor Insulation	Conductor Material	Jacket Color	Ratings	Wire Gauge	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Length	Length
Belden Inc. 5200UE 008U500	Rip Cord	Security Sound	0.432 mm	0.017 in	2	300 V	500 '	152.4 m	Polypropylene (PP)	Copper Tinned	Gray	UL Style CMR	16 AWG	Multi-Conductor	4.67 mm	0.184 in	19 Strands	29 AWG	Poly-Vinyl Chloride (PVC) Riser
Belden Inc. 5200UE 0071000	Rip Cord	Security Sound	0.432 mm	0.017 in	2	300 V			Polypropylene (PP)	Copper Tinned	Violet	UL Style CMR	16 AWG	Multi-Conductor	4.67 mm	0.184 in	19 Strands	29 AWG	Poly-Vinyl Chloride (PVC) Riser	1000 ft	304.8 m
Belden Inc. 5200UE 0021000	Rip Cord	Security Sound	0.432 mm	0.017 in	2	300 V			Polypropylene (PP)	Copper Tinned	Red	UL Style CMR	16 AWG	Multi-Conductor	4.67 mm	0.184 in	19 Strands	29 AWG	Poly-Vinyl Chloride (PVC) Riser	1000 ft	304.8 m
Belden Inc. 5200UE 0081000		Commercial Audio	0.432 mm	0.017 in	2				Polypropylene (PP)	Copper Bare	Gray		16 AWG	Multi-Conductor	4.57 mm	0.18 in	19 Strands	29 AWG	Poly-Vinyl Chloride (PVC) Riser	1000 ft	304.8 m
Belden Inc. 5200UE 009U1000	Rip Cord	Security Sound	0.432 mm	0.017 in	2	300 V			Polypropylene (PP)	Copper Tinned		UL Style CMR	16 AWG	Multi-Conductor	4.67 mm	0.184 in	19 Strands	29 AWG	Poly-Vinyl Chloride (PVC) Riser	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Gray 16 AWG 1000.0' (304.8m)
