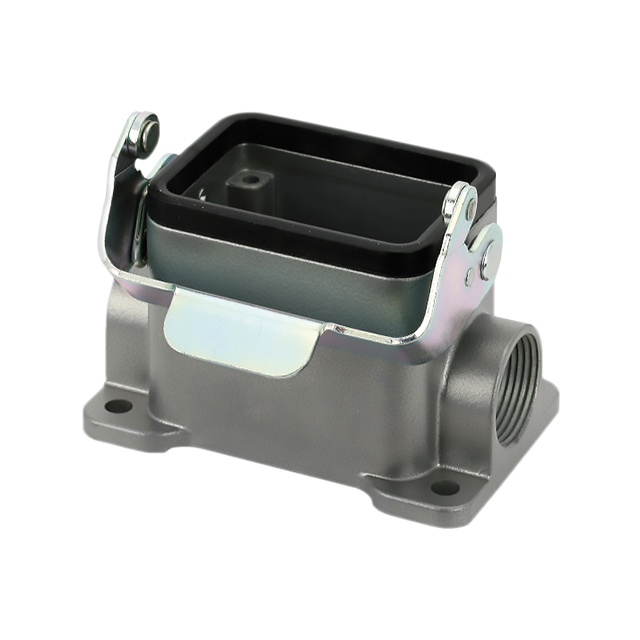

C14610N0066032

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZE6 M25

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZE6 M25

Technical Specifications

Parameters and characteristics for this part

Specification	C14610N0066032

Connector Type	Base - Box Mount
Features	Feed Through
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	84 mm
Size / Dimension [x]	3.307 in
Size / Dimension [y]	54 mm
Size / Dimension [y]	2.126 in
Size / Dimension [z]	74 mm
Size / Dimension [z]	2.913 in
Style	Side Entry
Thread Size	M25

Part	Ingress Protection	Connector Type	Housing Material	Thread Size	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Style
Amphenol Tuchel Industrial C14610N0068062	IP65 - Dust Tight Water Resistant	Base - Box Mount	Aluminum Alloy Die Cast	M32	Cover	74 mm	84 mm	54 mm	3.307 in	2.126 in	2.913 in	100 °C	-40 °C	Locking Clip (1) on Base Bottom	Side Entry
Amphenol Tuchel Industrial C14610N0066032	IP65 - Dust Tight Water Resistant	Base - Box Mount	Aluminum Alloy Die Cast	M25	Feed Through	74 mm	84 mm	54 mm	3.307 in	2.126 in	2.913 in	100 °C	-40 °C	Locking Clip (1) on Base Bottom	Side Entry

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 41.04

General part information

Base - Box Mount Connector Side Entry M25 E6 IP65 - Dust Tight, Water Resistant

Technical documentation and resources

No documents available
