TLE5012BE5000MS2GOTOBO1
ActiveXENSIV(TM) - TLE5012B E5000 SENSOR 2GO KIT, AUTOMOTIVE PREDEFINED VARIANT WITH SSC & PWM COMMUNICATION PROTOCOL
Deep-Dive with AI
Search across all available documentation for this part.
TLE5012BE5000MS2GOTOBO1
ActiveXENSIV(TM) - TLE5012B E5000 SENSOR 2GO KIT, AUTOMOTIVE PREDEFINED VARIANT WITH SSC & PWM COMMUNICATION PROTOCOL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TLE5012BE5000MS2GOTOBO1 |
|---|---|
| Embedded | MCU, 32-Bit |
| Embedded | True |
| Sensing Range | 360 ° |
| Sensor Type | Magnetic, Rotary Position |
| Supplied Contents | Board(s) |
| Utilized IC / Part | TLE5012B |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TLE5012 Series

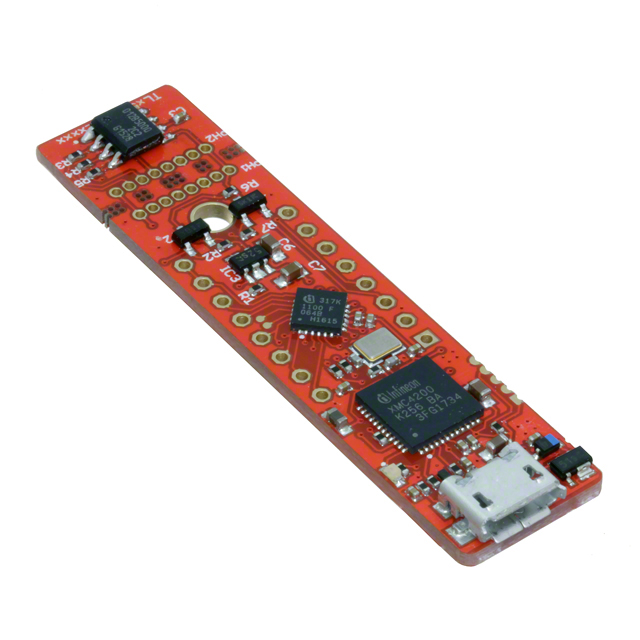

Infineon´s XENSIV™ TLx5012B magnetic angle sensor 2GO kit is a budget-priced entry level evaluation kit equipped with a TLE5012B /TLI5012B digital GMR angle sensor interfaced with an XMC1100 Infineon Microcontroller based on ARM Cortex M0 CPU. The sensor is assembled in four different variants: The hardware & software bundle allows decoding and acquisition of all communication protocols, access to RAM registers and soft fusing of different variants, software download atsensors 2GO
