Technical Specifications
Parameters and characteristics for this part
| Specification | PI2SSD3212ZLE |
|---|---|
| Mounting Type | Surface Mount |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 14 |
| On-State Resistance (Max) | 8 Ohm |

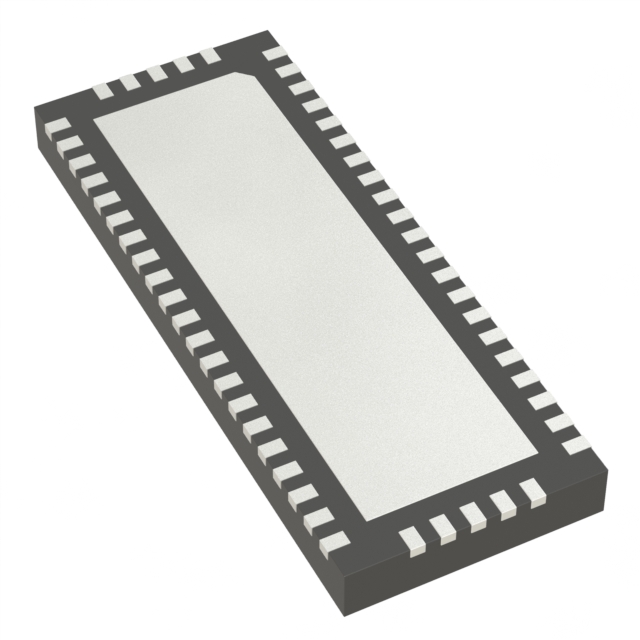

| Package / Case | 52-WFQFN Exposed Pad |
| Supplier Device Package | 52-TQFN (3.5x9) |
| Switch Circuit | SPDT |
| Voltage - Supply, Single (V+) | 1.8 V, 1.35 V, 1.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PI2SSD3212 Series
This 14-bit SSD switch is designed for 1.35V/ 1.5V/ 1.8V supply voltage, POD_12, SSTL_135, SSTL_15 or SSTL_18 signaling and CMOS select input signals. It is designed for DDR2 or DDR3 memory bus with speed up to 5Gbps.It supports DDR3 1866 Mbps.PI2SSD3212 has a 1:2 demux or 2:1 mux topology. All 14-bit channels can be switched to one of the two ports simultaneously with the SEL input. This device also allows all ports to be disconnected. PI2SSD3212 uses Diodes' proprietary high speed switch technology providing consistent high bandwidth across all channels, with very little insertion loss, cross-talk, and bit to bit skew. It is available in a 52-pin TQFN 3.5x9x0.4mm package and 48-pin TFBGA 4.5x4.5x0.8mm package.
