8561-3-5

Active

3M (TC)

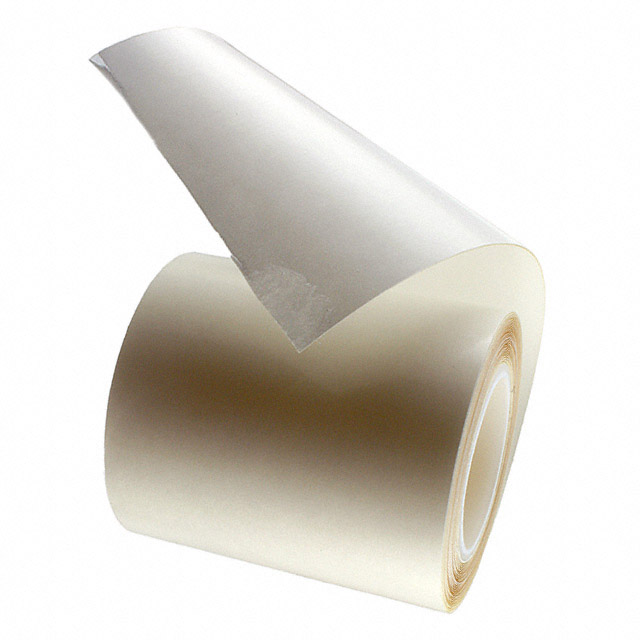

TAPE PROTECTIVE CLEAR 3"X5YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE PROTECTIVE CLEAR 3"X5YDS

Technical Specifications

Parameters and characteristics for this part

Part	Usage	Thickness	Thickness	Thickness	Width [x]	Width [x]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive [x]	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Color	Adhesive	Tape Type	Length	Length	Length	Backing, Carrier	Width [y]	Width [y]
3M (TC) 8561-1-5	Corrosion Protection	0.356 mm	0.014 in	14 mils	25.4 mm	1 in	2 mils	0.051 mm	0.002 "	1.2 mils	0.0012 "	0.03 mm	Clear	Acrylic	Protective	4.6 m	15 ft	5 yd	Paper
3M (TC) 8561-12-5	Corrosion Protection	0.356 mm	0.014 in	14 mils	304.8 mm	12 in	2 mils	0.051 mm	0.002 "	1.2 mils	0.0012 "	0.03 mm	Clear	Acrylic	Protective	4.6 m	15 ft	5 yd	Paper
3M (TC) 8561-3-5	Corrosion Protection	0.356 mm	0.014 in	14 mils	76.2 mm	3 in	2 mils	0.051 mm	0.002 "	1.2 mils	0.0012 "	0.03 mm	Clear	Acrylic	Protective	4.6 m	15 ft	5 yd	Paper
3M (TC) 8561-5-5	Corrosion Protection	0.356 mm	0.014 in	14 mils			2 mils	0.051 mm	0.002 "	1.2 mils	0.0012 "	0.03 mm	Clear	Acrylic	Protective	4.6 m	15 ft	5 yd	Paper	127 mm	5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Protective Tape Acrylic Adhesive Clear 3.00" (76.20mm) X 15' (4.6m) 5 yds

Technical documentation and resources

No documents available
