345-016-540-104

Active

EDAC Inc.

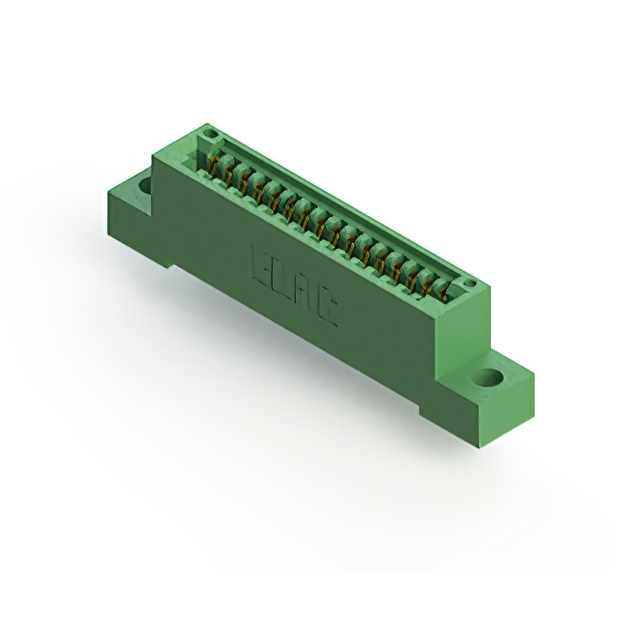

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 16 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Datasheet

345-016-540-104

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 16 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDrawing EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	345-016-540-104

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	16
Number of Positions/Bay/Row [custom]	16
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

345-016 Series

...

Part	Color	Number of Rows	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mounting Type	Number of Positions/Bay/Row [custom]	Read Out	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Features	Gender	Termination Rows	Material - Insulation	Flange Feature	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Contact Finish	Card Type	Flange Feature	Flange Feature	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 345-016-558-158	Green	1	Wire Wrap	-40 °C	105 ░C	16	Through Hole Right Angle	16	Single	Copper Alloy	10 Áin	0.25 Ám	2.54 mm	0.1 in	Card Guides	Female	1	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	Non Specified - Single Edge
EDAC Inc. 345-016-525-602	Green	1	Solder	-40 °C	105 ░C	16	Through Hole	16	Single	Copper Alloy	10 Áin	0.25 Ám	2.54 mm	0.1 in		Female	1	Polyester Thermoplastic		1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	Non Specified - Single Edge	3.25 mm	0.128 in
EDAC Inc. 345-016-542-478	Green	1	Wire Wrap	-40 °C	105 ░C	16	Through Hole	16	Single	Copper Alloy	10 Áin	0.25 Ám	2.54 mm	0.1 in	Card Guides	Female	1	Polyester Thermoplastic	4-40 Threaded Insert Top Mount Opening	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	Non Specified - Single Edge
EDAC Inc. 345-016-500-188	Green	1	Solder Eyelet(s)	-40 °C	105 ░C	16	Through Hole	16	Single	Copper Alloy	10 Áin	0.25 Ám	2.54 mm	0.1 in	Card Guides	Female	1	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	Non Specified - Single Edge
EDAC Inc. 345-016-540-658	Green	1	Wire Wrap	-40 °C	105 ░C	16	Through Hole	16	Single	Copper Alloy	10 Áin	0.25 Ám	2.54 mm	0.1 in	Card Guides	Female	1	Polyester Thermoplastic	4-40 Threaded Insert Top Mount Opening	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	Non Specified - Single Edge
EDAC Inc. 345-016-520-208	Green	2	Solder	-40 °C	105 ░C	16	Through Hole		Dual	Copper Alloy	10 Áin	0.25 Ám	2.54 mm	0.1 in		Female	2	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	Non Specified - Dual Edge			8	8	8
EDAC Inc. 345-016-542-412	Green	1	Wire Wrap	-40 °C	105 ░C	16	Through Hole	16	Single	Copper Alloy	10 Áin	0.25 Ám	2.54 mm	0.1 in		Female	1	Polyester Thermoplastic	Side Mount Opening Unthreaded	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	Non Specified - Single Edge	3.25 mm	0.128 in
EDAC Inc. 345-016-523-108	Green	1	Solder	-40 °C	105 ░C	16	Through Hole	16	Single	Copper Alloy	10 Áin	0.25 Ám	2.54 mm	0.1 in		Female	1	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	Non Specified - Single Edge
EDAC Inc. 345-016-540-104	Green	1	Wire Wrap	-40 °C	105 ░C	16	Through Hole	16	Single	Copper Alloy	10 Áin	0.25 Ám	2.54 mm	0.1 in		Female	1	Polyester Thermoplastic	Flush Mount Top Opening Unthreaded	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	Non Specified - Single Edge						3.96 mm	0.156 in
EDAC Inc. 345-016-525-178	Green	1	Solder	-40 °C	105 ░C	16	Through Hole	16	Single	Copper Alloy	10 Áin	0.25 Ám	2.54 mm	0.1 in	Card Guides	Female	1	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	Non Specified - Single Edge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 9.93
Newark	Each	25	$ 10.43
		50	$ 10.19
		100	$ 9.70
		250	$ 9.46
		500	$ 9.12

Description

General part information

345-016 Series

16 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green

Documents

Technical documentation and resources

Drawing EN

Datasheet
