Specification	0847290011

Color	Black
Configuration	A Female to A Male (Circular Coupling)
Features	Data Transfer and Charge, Industrial Environments, Panel Mount, IP67
Length	3 "
Shielding	Shielded
Specifications	USB 2.0
Transfer Rate	480 Mbps
Wire Gauge	28 AWG

084729 Series

Part	Specifications	Configuration	Color	Length	Transfer Rate	Wire Gauge	Shielding	Features	Voltage - Rated	Current Rating	Gender	Number of Ports	Connector Type	Mounting Feature	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Mating Cycles	Termination	Number of Contacts	Ingress Protection Description	Ingress Protection IP Rating	Material Flammability Rating	Contact Finish	Insulation Color

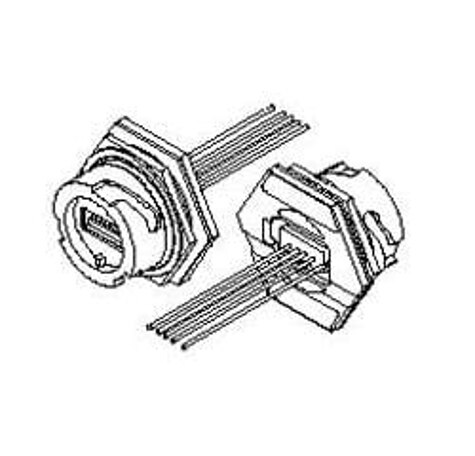

Molex 0847290005	USB 2.0	A Female to A Male (Circular Coupling)	Black	4.92 ft	480 Mbps	28 AWG	Shielded	Data Transfer and Charge Industrial Environments IP67 Panel Mount
Molex 0847290023	USB 2.0	A Female to Wire Leads (Circular Coupling)	Multiple	0.75 ft	480 Mbps	28 AWG	Unshielded	Data Transfer and Charge Industrial Environments IP67 Panel Mount
Molex 0847290009	USB 2.0						Shielded	Circular Bayonet Coupling	30 VAC	1 A	Receptacle	1	USB-A (USB TYPE-A)	Bulkhead Front Side Nut	80 °C	-40 °C	Panel Mount Through Hole	200 cycles	Solder	4	Dust Tight Waterproof	IP67	UL94 V-0	Nickel	Black
Molex 0847290019	USB 2.0	A Female to Wire Leads (Circular Coupling)	Multiple	0.66 ft	480 Mbps	20 AWG	Unshielded	Data Transfer and Charge Industrial Environments IP67 Panel Mount
Molex 0847290015	USB 2.0	A Female to Wire Leads (Circular Coupling)	Multiple	3.75 ft	480 Mbps	20 AWG	Unshielded	Data Transfer and Charge Industrial Environments IP67 Panel Mount
Molex 0847290003	USB 2.0	A Female to A Male (Circular Coupling)	Black	0.5 ft	480 Mbps	28 AWG	Shielded	Data Transfer and Charge Industrial Environments IP67 Panel Mount
Molex 0847290011	USB 2.0	A Female to A Male (Circular Coupling)	Black	3 "	480 Mbps	28 AWG	Shielded	Data Transfer and Charge Industrial Environments IP67 Panel Mount
Molex 0847290025	USB 2.0	A Female to Cable (Round)		1.48 ft	480 Mbps	20 AWG	Shielded	Data Transfer and Charge
Molex 0847290013	USB 2.0	A Female to A Male (Circular Coupling)		3 "	480 Mbps	28 AWG	Shielded	Data Transfer and Charge Industrial Environments IP67 Panel Mount
Molex 0847290010	USB 2.0	A Female to Wire Leads (Circular Coupling)	Black	0.5 ft	480 Mbps	28 AWG	Shielded	Data Transfer and Charge Industrial Environments IP67 Panel Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

0847290011 | Datasheet
