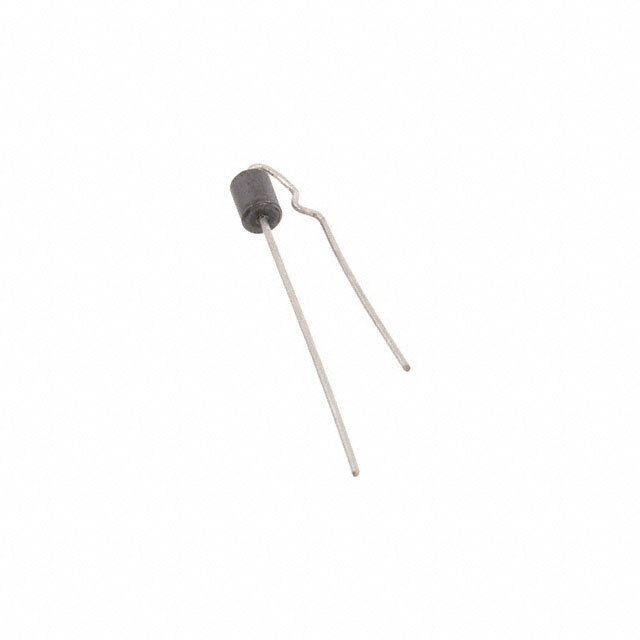

B-01-RT
ActiveKEMET
FERRITE BEAD 2 OHM AXIAL 1LN
Deep-Dive with AI
Search across all available documentation for this part.
B-01-RT
ActiveKEMET
FERRITE BEAD 2 OHM AXIAL 1LN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B-01-RT |
|---|---|
| Current Rating (Max) [Max] | 5 A |
| Impedance @ Frequency | 1 MHz, 2 Ohms |
| Mounting Type | Through Hole |
| Number of Lines | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Size / Dimension [diameter] | 3.4 mm |
| Size / Dimension [diameter] | 0.134 in |
| Size / Dimension [x] | 0.512 in |
| Size / Dimension [x] | 13 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 0.27 | |
Description
General part information
B-01-R Series
2 Ohms @ 1 MHz 1 Signal Line Ferrite Bead Axial, Kinked Radial Bend 5A
Documents
Technical documentation and resources
