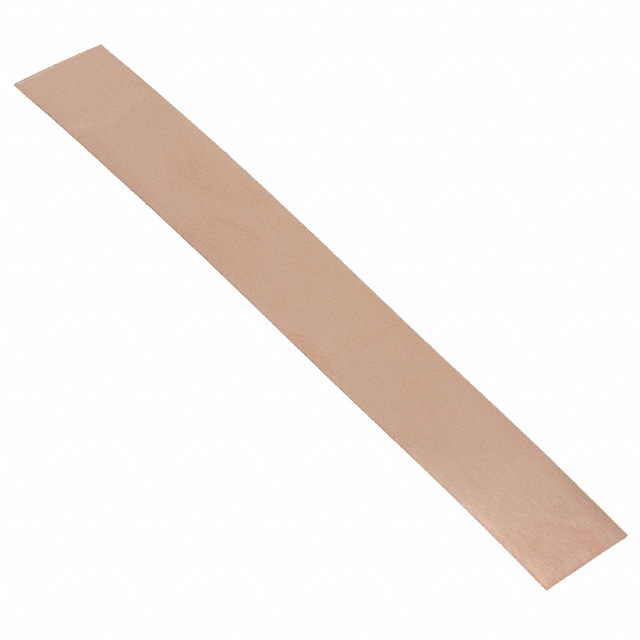

3M 1125 1/2" X 3"-100

Active

3M (TC)

RF SHLDING SHEET 3"X0.5" 100PK

Search across all available documentation for this part.

Active

3M (TC)

RF SHLDING SHEET 3"X0.5" 100PK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF EMI Shielding Sheet 1125 Copper Foil Acrylic, Non-Conductive, Single Sided 0.500" (12.70mm) X 3.000" (76.20mm) X 0.004" (0.09mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	3M 1125 1/2" X 3"-100	1125 Series

Adhesive	Acrylic, Non-Conductive, Single Sided	Acrylic, Non-Conductive, Single Sided
Length	3 in	0.5 - 4 in
Length	76.2 mm	12.7 - 101.6 mm
Material	Copper Foil	Copper Foil
Shape	Rectangular	Rectangular, Circular, Square
Shelf Life	-	60 Months
Thickness - Overall	0.09 mm	0.09 mm
Thickness - Overall	0.004 in	0.004 in
Type	Shielding Sheet	Shielding Sheet
Width	-	0.75 in
Width	-	19.05 mm
Width	-	1 - 2 in
Width	-	50.8 mm
Width	-	25.4 - 38.1 mm

RF SHLDING SHEET 4"X0.75" 100PK

Part	Shape	Adhesive	Thickness - Overall	Thickness - Overall	Length	Length	Type	Material	Width [y]	Width [y]	Shelf Life	Width [x]	Width [x]	Width
3M (TC) 3M 1125 3/4" X 4"-100	Rectangular	Acrylic, Non-Conductive, Single Sided	0.09 mm	0.004 in	4 in	101.6 mm	Shielding Sheet	Copper Foil	0.75 in	19.05 mm
3M (TC) 1125-0.75-2(100)	Rectangular	Acrylic, Non-Conductive, Single Sided	0.09 mm	0.004 in	2 in	50.8 mm	Shielding Sheet	Copper Foil	0.75 in	19.05 mm	60 Months
3M (TC) 3M 1125 3/4" X 3"-100	Rectangular	Acrylic, Non-Conductive, Single Sided	0.09 mm	0.004 in	3 in	76.2 mm	Shielding Sheet	Copper Foil	0.75 in	19.05 mm
3M (TC) 3M 1125 CIRCLE-0.75"-250	Circular	Acrylic, Non-Conductive, Single Sided	0.09 mm	0.004 in			Shielding Sheet	Copper Foil	0.75 in	19.05 mm
3M (TC) 3M 1125 CIRCLE-2"-100	Circular	Acrylic, Non-Conductive, Single Sided	0.09 mm	0.004 in			Shielding Sheet	Copper Foil				2 in	50.8 mm
3M (TC) 3M 1125 1/2" X 3"-100	Rectangular	Acrylic, Non-Conductive, Single Sided	0.09 mm	0.004 in	3 in	76.2 mm	Shielding Sheet	Copper Foil
3M (TC) 3M 1125 1/2" X 4"-100	Rectangular	Acrylic, Non-Conductive, Single Sided	0.09 mm	0.004 in	4 in	101.6 mm	Shielding Sheet	Copper Foil
3M (TC) 1125SQ-0.5(250)	Square	Acrylic, Non-Conductive, Single Sided	0.09 mm	0.004 in	0.5 in	12.7 mm	Shielding Sheet	Copper Foil
3M (TC) 1125-1-2(100)	Rectangular	Acrylic, Non-Conductive, Single Sided	0.09 mm	0.004 in	2 in	50.8 mm	Shielding Sheet	Copper Foil				1 in		25.4 mm
3M (TC) 3M 1125 1.5"SQ-100	Square	Acrylic, Non-Conductive, Single Sided	0.09 mm	0.004 in	1.5 "	38.1 mm	Shielding Sheet	Copper Foil				1.5 in		38.1 mm
