132266

Active

Amphenol RF

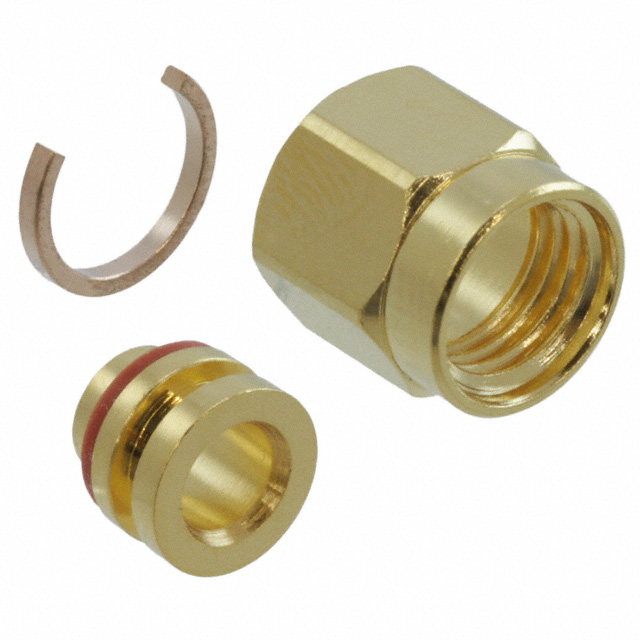

CONN SMA PLUG STR 50 OHM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	132266

Body Finish	Gold
Body Material	Brass
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Coupling Nut, 1 Ring, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

1322 Series

Part	Shield Termination	Dielectric Material	Mounting Type	Mounting Feature	Features	Center Contact Plating	Frequency - Max [Max]	Body Material	Mating Cycles	Body Finish	Center Contact Material	Housing Color	Connector Style	Contact Termination	Number of Ports	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Includes	Cable Group	Voltage Rating	Convert From (Adapter End)	Convert To (Adapter End)	Conversion Type	Style	Adapter Type	Adapter Series
Amphenol RF 132267	Solder	Polytetrafluoroethylene (PTFE)	Panel Mount Right Angle	Flange	Extended Insulation	Gold	12.4 GHz	Brass	500	Gold	Beryllium Copper	Gold	SMA	Solder Cup	1	Female Socket Jack	-65 ░C	165 °C	50 Ohms
Amphenol RF 132203	Solder	Polytetrafluoroethylene (PTFE)	Panel Mount Right Angle Through Hole	Bulkhead - Front Side Nut		Gold	12.4 GHz	Brass	500	Gold	Beryllium Copper	Gold	SMA	Solder	1	Female Socket Jack	-65 ░C	165 °C	50 Ohms	1 Connector 1 Lockwasher 1 Nut
Amphenol RF 132270	Solder	Polytetrafluoroethylene (PTFE)	Board Edge End Launch Panel Mount	Bulkhead - Rear Side Nut		Gold	18 GHz	Brass	500	Gold	Beryllium Copper	Gold	SMA	Solder	1	Female Socket Receptacle	-65 ░C	165 °C	50 Ohms	1 Connector 1 Lockwasher 1 Nut
Amphenol RF 132231	Crimp	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)			Gold	12.4 GHz	Brass	500	Gold	Brass	Gold	SMA	Solder	1	Male Pin Plug	-65 ░C	165 °C	50 Ohms	1 Connector 1 Contact 1 Ferrule 1 Insulator	Belden 9258 LMR-240 RG-8X
Amphenol RF 132272	Crimp	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle			Gold	12.4 GHz	Brass	500	Gold	Brass	Gold	SMA	Solder	1	Male Pin Plug	-65 ░C	165 °C	50 Ohms	1 Connector 1 End Cap 1 Ferrule	180 180A 180B 1865A 195 Belden 1855 RG-122	375 V
Amphenol RF 132266	Solder	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)				18 GHz	Brass	500	Gold		Gold	SMA	Solder	1	Male Pin Plug	-65 ░C	165 °C	50 Ohms	1 Connector 1 Coupling Nut 1 Ring
Amphenol RF 132217		Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)			Gold	12.4 GHz	Brass		Gold	Beryllium Copper Brass						-65 ░C	165 °C	50 Ohms	1 Connector 1 Nut			SMA Plug Male Pin	Female Socket (2) SMA Jack	Same Series	T-Shape	Plug to Jack	SMA to SMA Dual
Amphenol RF 132204	Solder	Polytetrafluoroethylene (PTFE)		Flange		Gold	12.4 GHz	Brass	500	Gold	Beryllium Copper	Gold	SMA	Solder	1	Female Socket Receptacle	-65 ░C	165 °C	50 Ohms
Amphenol RF 132284	Crimp	Polytetrafluoroethylene (PTFE)		Bulkhead - Front Side Nut		Gold	12.4 GHz	Brass	500	Gold	Beryllium Copper	Gold	SMA	Solder	1	Female Socket Jack	-65 ░C	165 °C	50 Ohms	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut	188 188A 316 LMR-100 M17/119-RG174 RG-174	375 V
Amphenol RF 132239	Crimp	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle			Gold	12.4 GHz	Brass	500	Gold	Brass	Gold	SMA	Solder	1	Male Pin Plug	-65 ░C	165 °C	50 Ohms	1 Connector 1 End Cap 1 Ferrule	Belden 9258 LMR-240 RG-8X
