60115-1
ActiveTE Connectivity AMP Connectors
.125 PIN IS 22-20 .016BR ROHS COMPLIANT: YES
60115-1
ActiveTE Connectivity AMP Connectors
.125 PIN IS 22-20 .016BR ROHS COMPLIANT: YES
Description
General part information
60115 Series

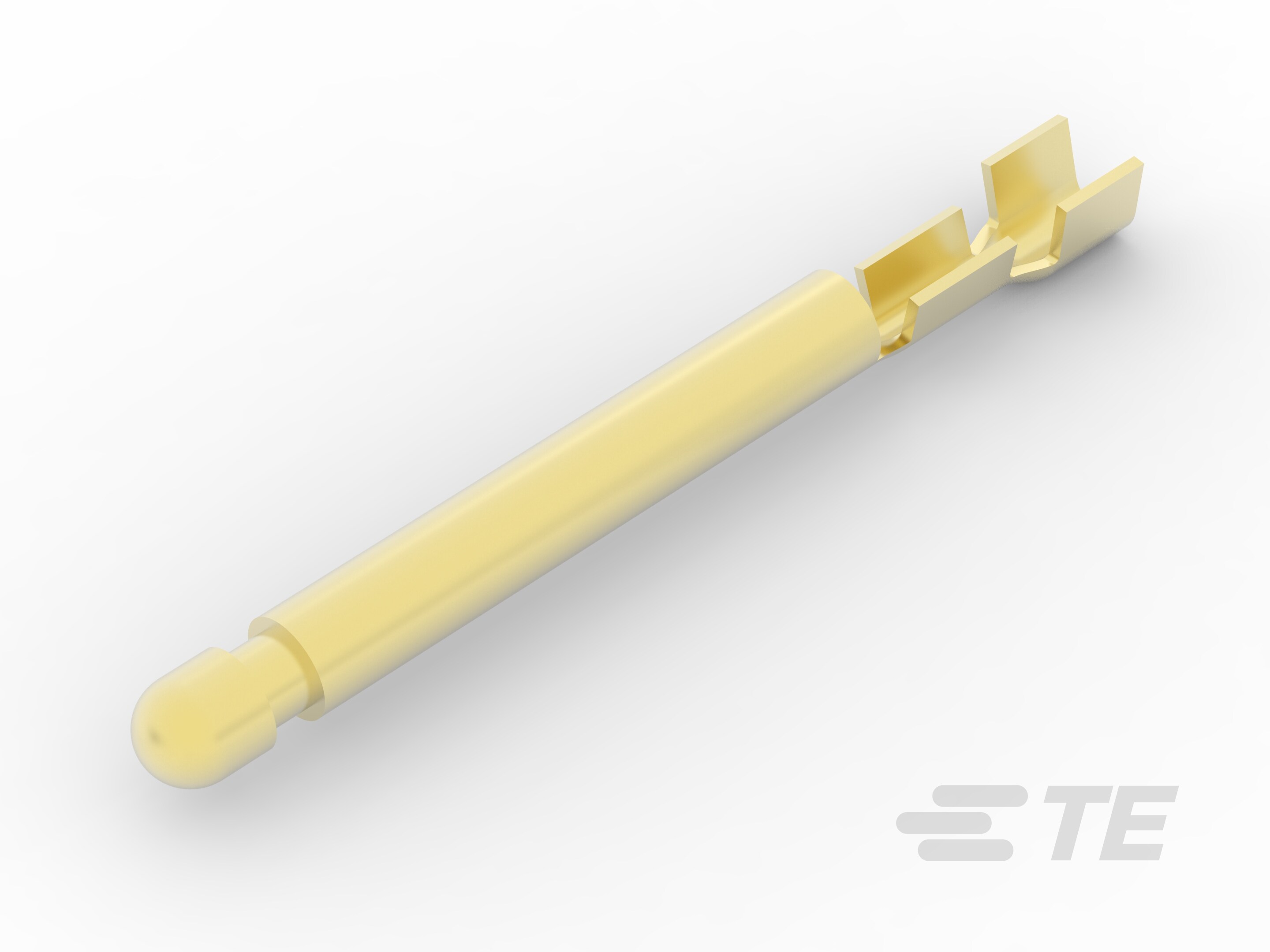

Pin, 3.17 mm [.125 in] Pin Diameter, 22 – 20 AWG, .3 – .6 mm² Wire, 642 – 1021 CMA, Open Barrel, Unplated Plating, 35.69 mm [1.405 in] Length, Reel
Technical Specifications
Parameters and characteristics for this part
| Specification | 60115-1 |
|---|---|
| Contact Material | Brass |
| Diameter - Barrel | 0.093 in |
| Insulation | Non-Insulated |
| Insulation Diameter (Max) | 0.09 in |
| Insulation Diameter (Min) | 0.075 in |
| Length - Overall | 1.405 in |
| Terminal Type | Male, Pin (Plug) |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
